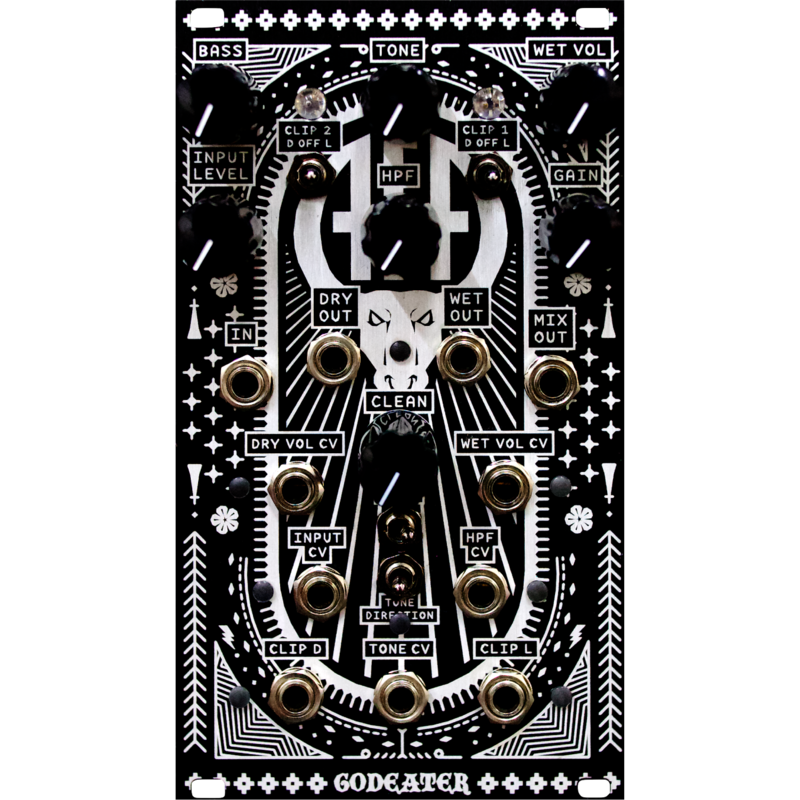

Godeater Eurorack
Eurorack distortion module for bass, based on the Godeater pedal and redesigned for modular use. It adds CV control over nearly every parameter and suits bass guitar, kick drums and other low-frequency sources in a 14HP format.
- Eurorack bass distortion based on the Godeater pedal
- CV control over almost every parameter
- Improved dry/wet crossfade from clean to dirty
- Wider range on the input filter
- Expansion header installed
- 14HP wide, 22mm deep
Fotod
7Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli Godeater Eurorack, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
Godeater Bass Distortion is a Eurorack module derived from the Godeater bass distortion pedal. It is a full redesign rather than a rehousing, built so that control voltages can steer almost every parameter while the character of the original circuit is kept. The circuit aims to distort bass without blending in a clean signal and without losing low end.
The distortion is designed for full-bandwidth saturation, so bass content stays intact. Three controls handle tone and low-end shaping, and a crossfade lets the clean and distorted signals be mixed. The newest edition has a reworked dry/wet crossfade, a wider range on the input filter, and an expansion header already fitted for later expansion. It is also used on kick drums.
The module is 14HP wide and 22mm deep. It draws 35mA from the +12V rail and 25mA from the -12V rail. A manual is available for download, and the module is listed on ModularGrid.
Video
Tehnilised andmed
- Bränd
- Animal Factory Amplification
- Mudel
- Godeater Eurorack
- Kategooria
- Efektid ja pedaalid
Power
- Current draw +12V
- 35mA
- Current draw -12V
- 25mA
Physical
- Format
- Eurorack
- Width
- 14HP
- Depth
- 22mm
Audio
- Type
- Bass distortion
- Tone controls
- Three controls for tonal and low-end sculpting
- Clean/dirty blend
- Improved dry/wet crossfade
- Input filter
- Wider range than earlier editions
- Bandwidth
- Full-bandwidth saturation
Connectivity
- CV control
- Almost every parameter
- Expansion header
- Installed for future expansion
Software
- Manual
- Downloadable
- ModularGrid
- Listed
