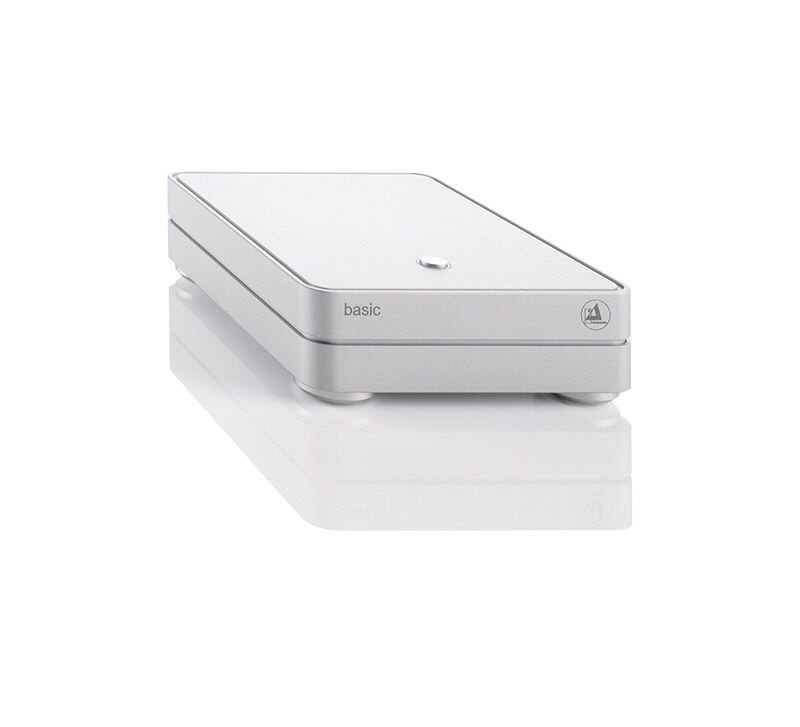

Basic V2
Compact phono preamplifier for moving-magnet and moving-coil cartridges, built in a milled solid-aluminium case. Suited to turntable owners who want a small, switchable MM/MC stage with an optional subsonic filter.
- Switchable MM / MC operation via underside switch
- Gain 46 dB (MM) and 66 dB (MC) at 1 kHz
- Switchable subsonic filter, 20 Hz, 18 dB/oct
- RIAA accuracy ±0.1 dB, THD < 0.002 %
- Milled solid-aluminium case, silver or black
- External ±18 V DC plug-in power supply
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli Basic V2, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The Basic V2 is a phono preamplifier with a switch on the underside to select moving-magnet or moving-coil operation. In MC mode the cartridge loading is fixed at a value intended to suit most demanding MC cartridges without further adjustment. Gain is 46 dB for MM and 66 dB for MC, measured at 1 kHz.
The case is milled from solid aluminium and comes in silver or black anodised finish. The only control on top is a power switch. A second underside switch engages a subsonic filter that cuts very low frequencies in both MM and MC modes, with a 20 Hz corner and an 18 dB per octave slope on each channel.
Input and output are on gold-plated unbalanced RCA (Cinch) sockets. Power comes from an external plug-in supply delivering ±18 V DC on a 1.4 m cable. The unit draws at most 3 W in use and under 0.3 W in standby. RIAA equalisation accuracy is specified at ±0.1 dB, and distortion below 0.002 %.
Video
Tehnilised andmed
- Bränd
- Clearaudio
- Mudel
- Basic V2
- Kategooria
- Hi-Fi ja kodune heli › Muu Hi-Fi
Audio
- Modes
- MM / MC switchable (underside)
- Gain at 1 kHz
- +46 dB (MM), +66 dB (MC)
- RIAA accuracy
- ± 0.1 dB
- Distortion (THD)
- < 0.002 % (IEC A)
- Signal-to-noise ratio
- −72 dB (MM), −67 dB (MC)
- Overload margin
- +20 dB
- Channel separation
- > 90 dB (at 1 kHz)
- Cutting curve equalisation
- 75 μs / 318 μs / 3180 μs, 2 passive filters
- Subsonic filter
- Switchable (underside), 20 Hz (−18 dB/oct, per channel)
Inputs
- Input type
- Unbalanced (RCA / Cinch)
- Input impedance (MM)
- 47 kΩ / 270 pF
- Input impedance (MC)
- 500 Ω / 270 pF
Outputs
- Output type
- Unbalanced (RCA / Cinch)
- Maximum output voltage
- > 10 V (at 1 kHz)
- Output resistance
- 10 Ω
Power
- Power supply
- ± 18 V DC, external plug-in supply, 1.4 m cable
- Max. power consumption (operation)
- 3 W
- Standby power consumption
- < 0.3 W
Physical
- Dimensions (W × D × H)
- approx. 118 × 145 (158 with RCA) × 42 mm
- Weight
- approx. 1.2 kg (preamp and power supply)
- Case material
- Milled solid aluminium
- Colours
- Silver, black
- Warranty
- 3 years (if warranty card returned within 14 days of purchase)
