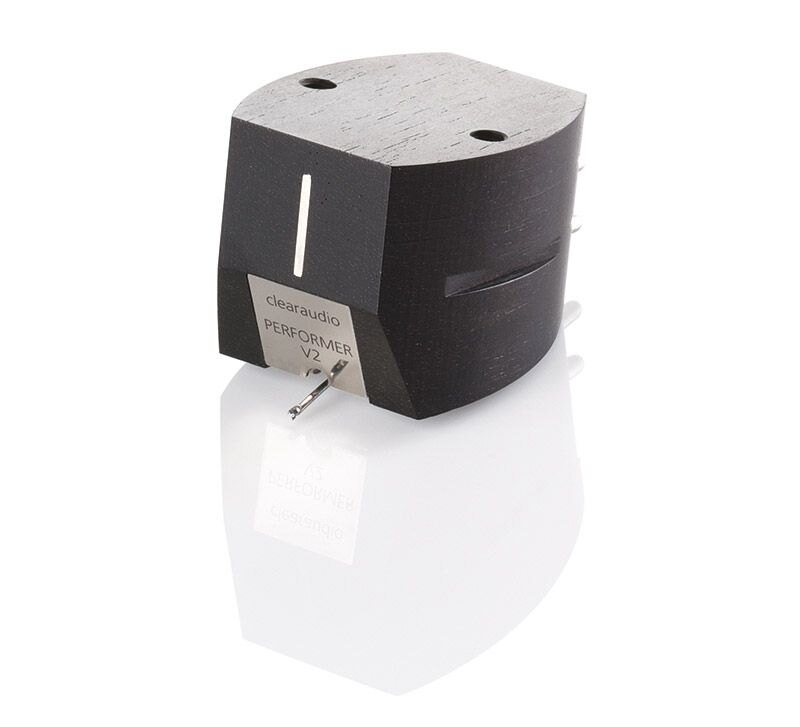

Performer V2
Moving-magnet phono cartridge with an ebony body, an elliptical diamond stylus on an aluminium cantilever and about 3.3 mV output. It suits turntable owners who want an MM cartridge for common tonearms.
- Moving-magnet (MM) cartridge
- Hand-polished ebony body
- Elliptical diamond on aluminium cantilever
- Output about 3.3 mV at 1 kHz, 5 cm/s
- Tracking force 2.2 g ± 0.3 g
- Weight 8.4 g (± 0.4 g)
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli Performer V2, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The Performer V2 is a moving-magnet cartridge from the MM V2 series. Its body is hand-polished ebony, chosen as a low-resonance base. The design aims to keep the moving mass low and uses an HD grinding technique for the stylus, together with damping of the pick-up system.
The stylus is an elliptical diamond on an aluminium cantilever. The cartridge delivers roughly 3.3 mV at 1 kHz and 5 cm/s, covers 20 Hz to 20 kHz, and is specified for a tracking force of 2.2 g ± 0.3 g. Each unit is measured several times across four levels, analysed and hand-selected to keep the stereo channels well matched with low phase and transient distortion.
It is intended to work with common tonearms and loads into a standard 47 kΩ input with 100 pF of capacitance. The whole cartridge weighs 8.4 g. A two-year manufacturer warranty applies if the warranty card is returned within 14 days of purchase.
Video
Tehnilised andmed
- Bränd
- Clearaudio
- Mudel
- Performer V2
- Kategooria
- DJ-tehnika › Helipead ja nõelad
Audio
- Frequency response
- 20 Hz – 20 kHz
- Output voltage (1 kHz, 5 cm/s)
- ~ 3.3 mV
- Channel separation (1 kHz)
- 20 dB
- Channel balance (1 kHz)
- 1.5 dB
- Tracking ability
- 80 µm
- Stylus compliance
- 15 µ/mN
Electrical
- Coil impedance (1 kHz)
- 0.66 kΩ
- Coil inductance
- 400 mH
- Load resistance
- 47 kΩ
- Capacitive load
- 100 pF
Stylus and tracking
- Cartridge type
- Moving magnet (MM)
- Cantilever / diamond cut
- Aluminium / elliptical
- Recommended tracking force
- 2.2 g ± 0.3 g
Physical
- Weight of complete system
- 8.4 g (± 0.4 g)
- Body material
- Ebony
Warranty
- Manufacturer warranty
- 2 years (warranty card returned within 14 days of purchase)
