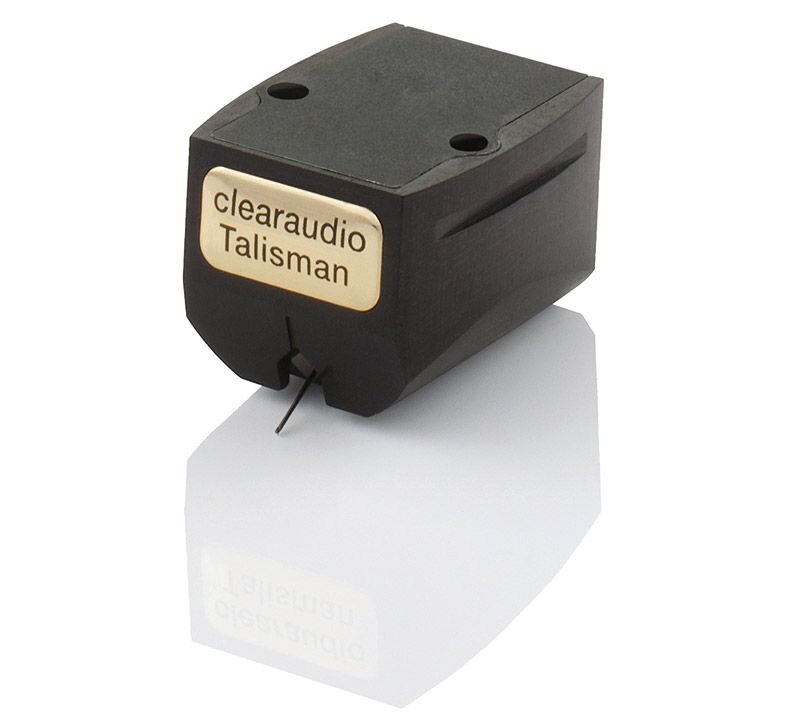

Talisman V2.1
Moving-coil phono cartridge with a hand-polished ebony body, boron cantilever and 24-carat gold coils in a pivot-point-symmetrical layout. Aimed at vinyl listeners who want a light, low-output MC cartridge for a universal tonearm.
- Moving-coil design with 24-carat gold coils
- Pivot-point-symmetrical coils with eight magnets
- Micro-HD diamond on a boron cantilever
- Hand-polished ebony body
- 0.5 mV output at 5 cm/s, 50 Ω impedance
- Tracking force 2.8 g (± 0.2 g), weight 10.6–11.2 g
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli Talisman V2.1, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The Talisman V2 Gold is a moving-coil cartridge built around a patented, fully pivot-point-symmetrical coil arrangement with eight magnets and gold-wire coils. The stylus is a Micro-HD diamond on a boron cantilever, mounted in a hand-polished ebony body that is chosen for its low resonance.
The system weighs between 10.6 and 11.2 g, so it suits a wide range of universal tonearms. Output is 0.5 mV at 5 cm/s with a system impedance of 50 Ω, which means it needs a phono stage with moving-coil input. Recommended tracking force is 2.8 g (± 0.2 g), and tracking ability is rated at 80 µm.
Frequency response runs from 20 Hz to 20 kHz, with channel separation of 25–30 dB and channel balance better than 0.5 dB. The manufacturer's warranty is 2 years when the registration card is returned within 14 days of purchase.
Video
Tehnilised andmed
- Bränd
- Clearaudio
- Mudel
- Talisman V2.1
- Kategooria
- DJ-tehnika › Helipead ja nõelad
Audio
- Frequency response
- 20 Hz – 20 kHz
- Output voltage (at 5 cm/s)
- 0.5 mV
- Channel separation
- 25 – 30 dB
- Channel balance
- < 0.5 dB
- Tracking ability
- 80 µm
- System impedance
- 50 Ω
- Stylus compliance
- 15 µ/mN
Stylus and Generator
- Cartridge type
- Moving coil (MC)
- Cantilever / stylus profile
- Boron / clearaudio Prime Line
- Stylus
- Micro-HD diamond
- Coil arrangement
- Absolutely pivot-point-symmetrical
- Coil material
- 24-carat gold
- Magnets
- 8
Setup
- Recommended tracking force
- 2.8 g (± 0.2 g)
Physical
- Weight of complete system
- 10.6 – 11.2 g
- Body
- Hand-polished ebony
Warranty
- Manufacturer's warranty
- 2 years (card returned within 14 days of purchase)
Documentation
- Manual
- Moving Coil V2, English / German
- Product safety notes
- Cartridges, English / German / French
