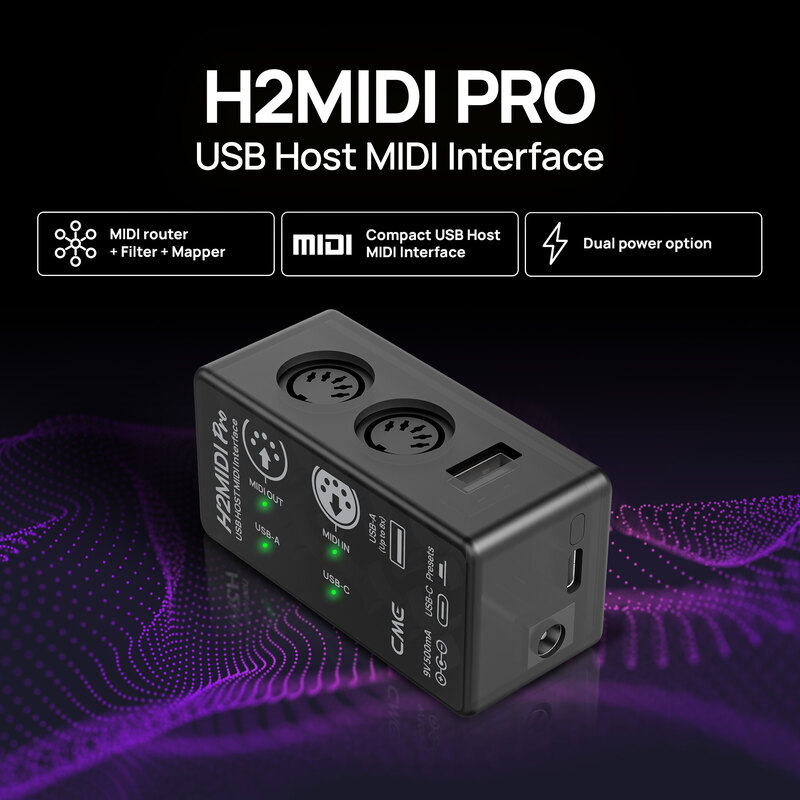

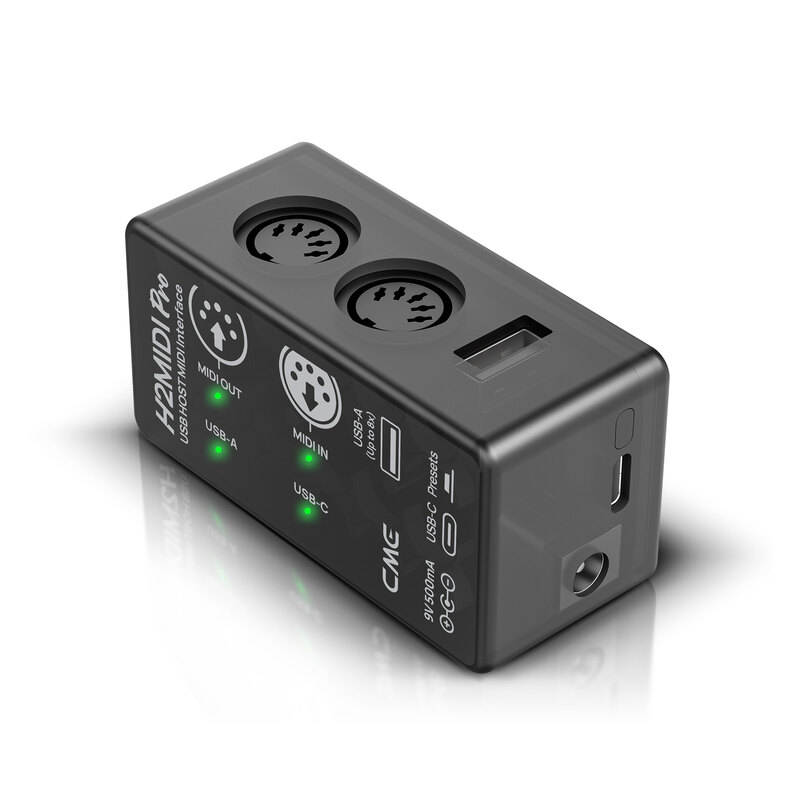

H2MIDI Pro
Compact USB host MIDI interface with one 5-pin DIN input and output, a USB-A host port for class-compliant devices and a USB-C port to a computer or mobile device. Suited to connecting USB MIDI gear to DIN hardware and routing, filtering or mapping MIDI between them.
- 1-in-1-out DIN MIDI I/O
- USB-A host: up to 8-in-8-out ports with a standard USB hub
- USB-C with 2-in-2-out virtual MIDI ports
- Routing, filtering and mapping via HxMIDI Tools
- HxMIDI Tools for Windows, macOS, Android and iOS
- Powered by 5V USB or 9V DC
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli H2MIDI Pro, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

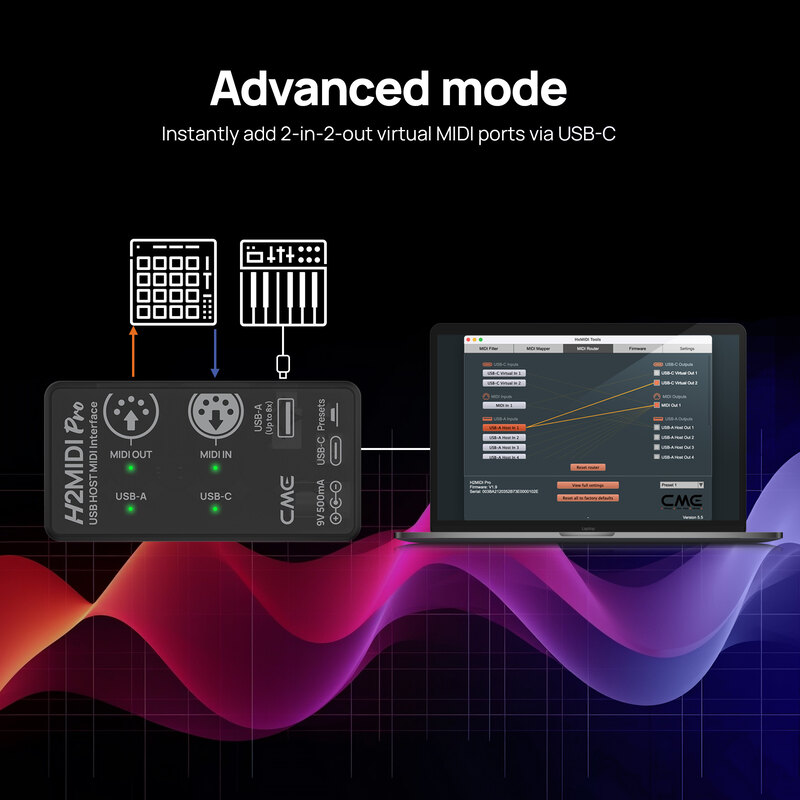

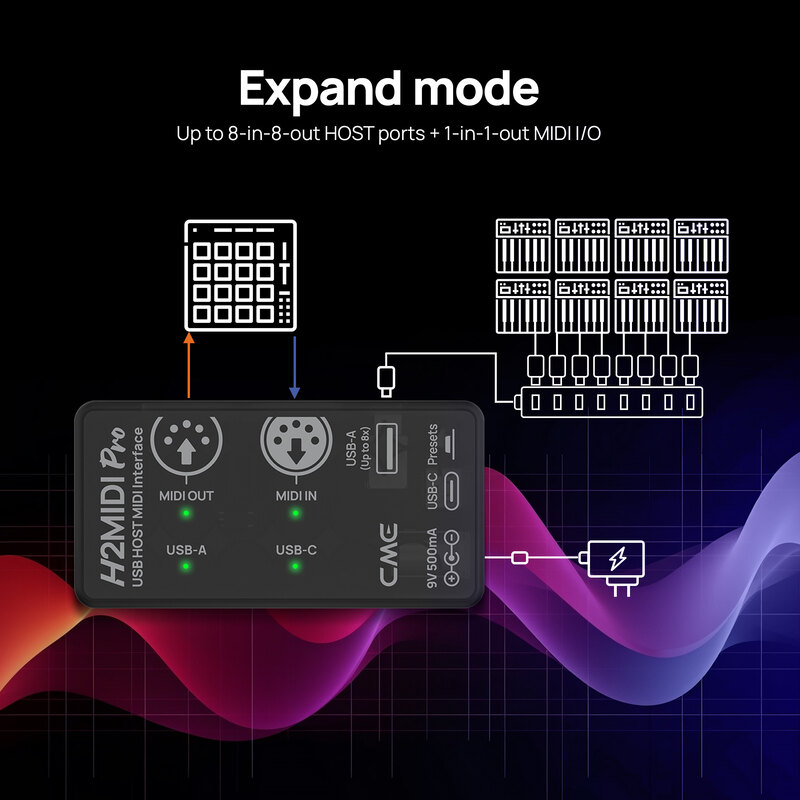

The H2MIDI Pro combines a 1-in-1-out DIN MIDI interface with a USB host port. Class-compliant USB MIDI devices connect to the USB-A port, which supports up to 8 in and 8 out host ports when expanded with a standard USB hub. The USB-C port presents 2 in and 2 out virtual MIDI ports to a computer or mobile device.

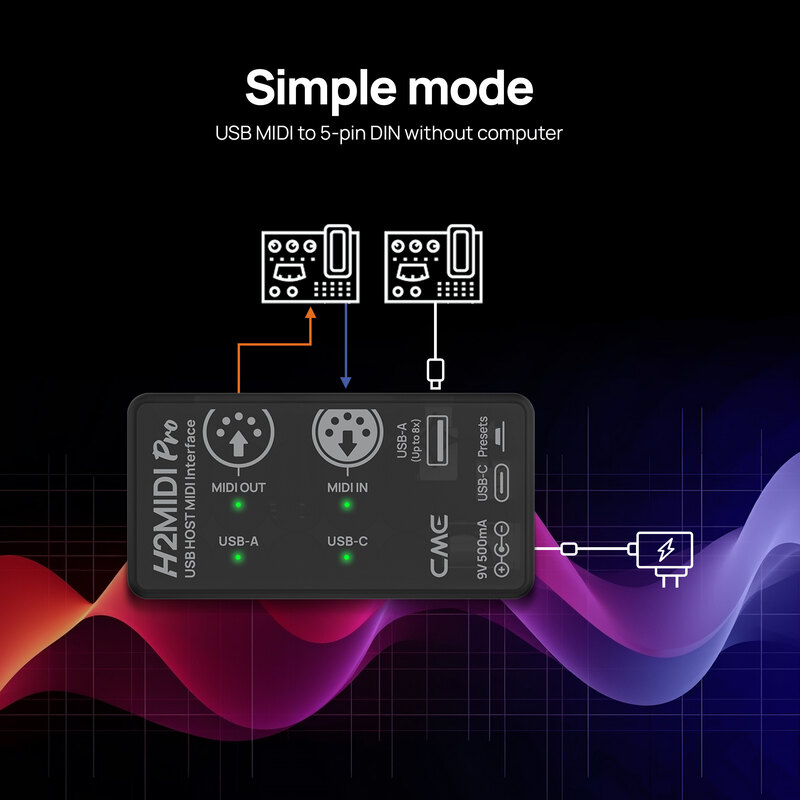

MIDI routing, filtering and mapping are configured in the HxMIDI Tools software, which is available for Windows, macOS, Android and iOS. This allows the unit to work as a standalone MIDI router between DIN and USB devices.
The unit can be powered either from a 5V USB supply or from a 9V DC supply.
Video
Tehnilised andmed
- Bränd
- CME
- Mudel
- H2MIDI Pro
- Kategooria
- Süntesaatorid ja klaviatuurid › MIDI-klaviatuurid ja kontrollerid
Inputs
- MIDI DIN inputs
- 1
- USB host input ports
- Up to 8 (via USB-A, with USB hub)
- USB-C virtual input ports
- 2
Outputs
- MIDI DIN outputs
- 1
- USB host output ports
- Up to 8 (via USB-A, with USB hub)
- USB-C virtual output ports
- 2
Connectivity
- MIDI I/O
- 1-in-1-out
- USB host port
- USB-A
- USB host expansion
- Standard USB hub
- Computer/device port
- USB-C
Software
- Configuration software
- HxMIDI Tools
- Supported platforms
- Windows, macOS, Android, iOS
- Functions
- MIDI routing, filtering, mapping
Power
- Power options
- 5V USB or 9V DC
General
- SKU
- S-F000C03
- Type
- Compact USB Host MIDI Interface
