RSC 2
The RSC 2 is a foldable 3-axis handheld camera gimbal for mirrorless and similar cameras, with a 3.0 kg tested handheld payload and a built-in battery rated for up to 14 hours. It suits solo shooters and small crews who want app control, ActiveTrack and SuperSmooth stabilization.
- 3.0 kg tested handheld payload
- Up to 14 h battery life, 3400 mAh built-in cell
- 360°/s max rotation speed on all axes
- SuperSmooth mode for lenses up to 100 mm equivalent
- ActiveTrack 3.0 needs RavenEye transmission system
- Folds to 260×210×75 mm
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli RSC 2, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

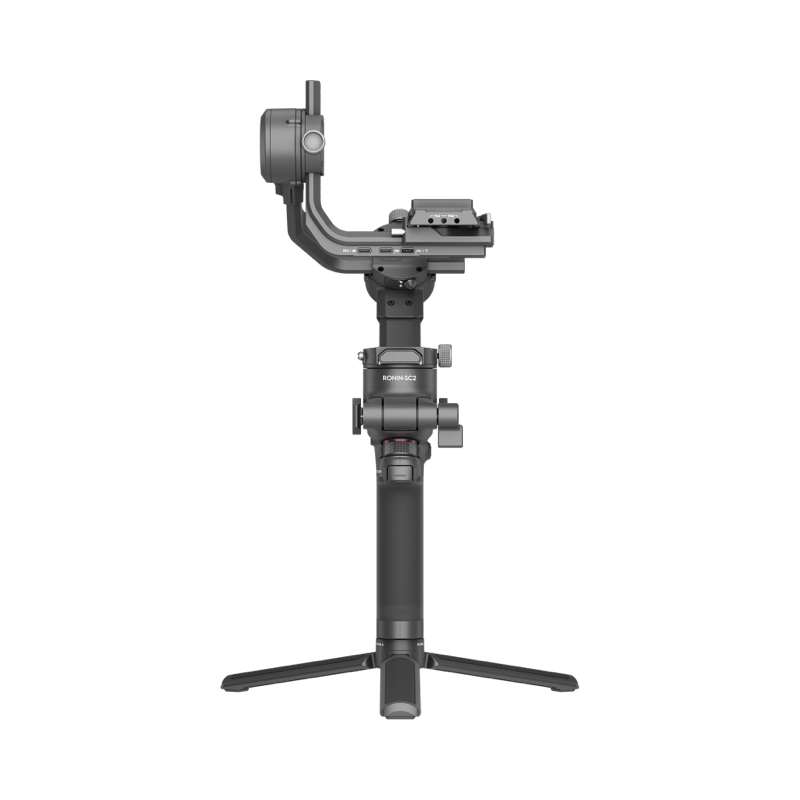

The RSC 2 is a handheld three-axis stabilizer built mainly from aluminum alloy. It supports a tested dynamic payload of 3.0 kg and rotates 360° per second on every axis. The body folds down to 260×210×75 mm, and a Briefcase mode lets the gimbal be carried and used in a compact position. A touchscreen, trigger, joystick, M button and a built-in front dial give direct control, with the dial defaulting to electronic focus.
Shooting features include SuperSmooth stabilization, which is meant for lenses up to 100 mm equivalent focal length and needs a lens support and fastening strap. Other modes include Sport, Portrait, Underslung, Roll 360, Flashlight and Selfie. ActiveTrack 3.0 follows one subject at a time and works only together with the Ronin RavenEye Image Transmission System. The Ronin app handles activation, firmware updates, camera parameter control, Timelapse (up to five waypoints) and Track (up to 10 waypoints).
The gimbal connects over Bluetooth 5.0 and USB-C, and the fixed 3400 mAh battery charges at 18 W over PD or QC 2.0 and can be used while charging. Mounting options include NATO port, M4 and 1/4"-20 holes, a cold shoe mount, and dual-layer quick-release plates for Arca and Manfrotto fittings. The power and data port is not waterproof or dustproof.
Video
Tehnilised andmed
- Bränd
- DJI
- Mudel
- RSC 2
- Kategooria
- Muu
Performance
- Load weight (reference)
- 3.0 kg (Handheld)
- Max controlled rotation speed, pan
- 360°/s
- Max controlled rotation speed, tilt
- 360°/s
- Max controlled rotation speed, roll
- 360°/s
- Mechanical range, pan
- 360° continuous rotation
- Mechanical range, roll
- -240° to +95°
- Mechanical range, tilt
- -112° to +214°
Connectivity
- Connections
- Bluetooth 5.0; USB-C
- Ronin app requirements
- iOS 11 or above; Android 7.0 or above
- Operating frequency
- 2.4000-2.4835 GHz
- Transmission power
- < 8 dBm
Accessory ports
- Mounting
- NATO port; M4 mounting hole; 1/4"-20 mounting hole; Cold shoe mount
- Ports
- Video Transmission/Follow Focus Motor Port (USB-C); RSS Camera Control Port (USB-C); Follow Focus Motor Port (USB-C)
Power
- Battery model
- RB2-3400mAh -7.2 V
- Battery type
- 18650 2S
- Capacity
- 3400 mAh
- Energy
- 24.48 Wh
- Max battery life
- 14 hours
- Charging time
- Approx. 2 hours with 18W fast charging (PD and QC 2.0)
- Charging temperature
- 5° to 40° C (41° to 104° F)
Physical
- Operating temperature
- -20° to 45° C (-4° to 113° F)
- Gimbal weight
- Approx. 1216 g (including battery, excluding Quick-Release Plate)
- Quick-Release Plate (Upper/Lower) weight
- Approx. 102 g
- Extended Grip/Tripod (Metal) weight
- Approx. 226 g
- Extended Grip/Tripod (Plastic) weight
- Approx. 160 g
- Dimensions, folded
- 260×210×75 mm (including the handle)
- Dimensions, unfolded
- 400×185×175 mm (including the handle, without Extended Grip/Tripod)
Software
- Guaranteed software updates
- Until 2026/12/31
