CX7

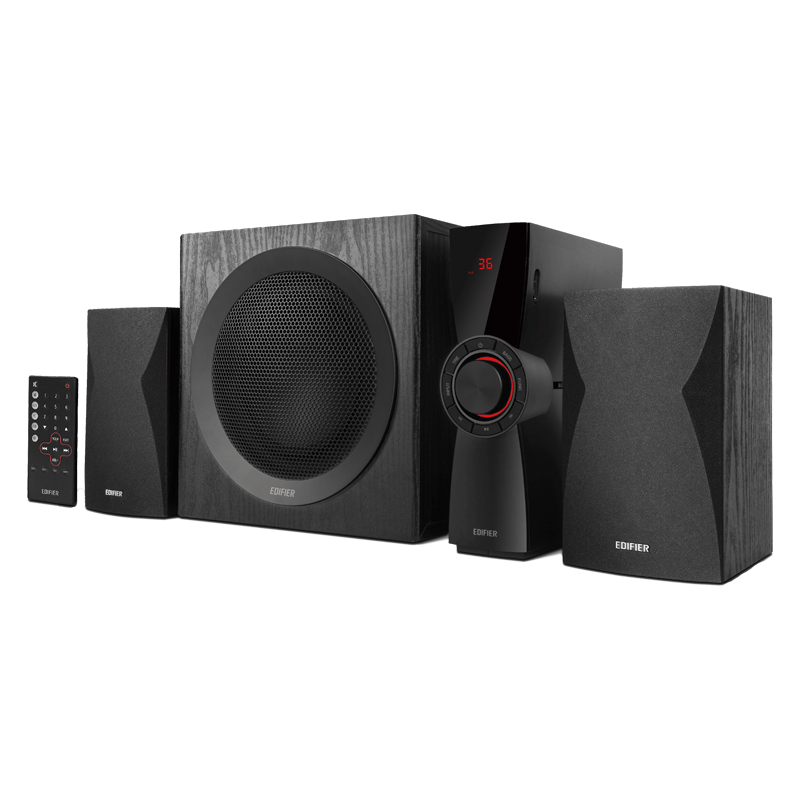

The CX7 is a 2.1 computer speaker system with two wooden satellite speakers and an 8-inch subwoofer, driven by built-in Class-D amplifiers. It suits desktop users who want to play PC, Bluetooth, USB or SD card audio with remote control.
- 2.1 system: two satellites plus 8-inch ported subwoofer
- 45 W RMS bass plus 12 W x 2 for mid-range and treble
- 3.5-inch mid-range and 1-inch silk dome tweeters
- Dual Class-D amplifiers with EQ and DRC
- Bluetooth V5.0, PC, AUX, USB and SD card inputs
- Control console with display and remote control
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli CX7, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

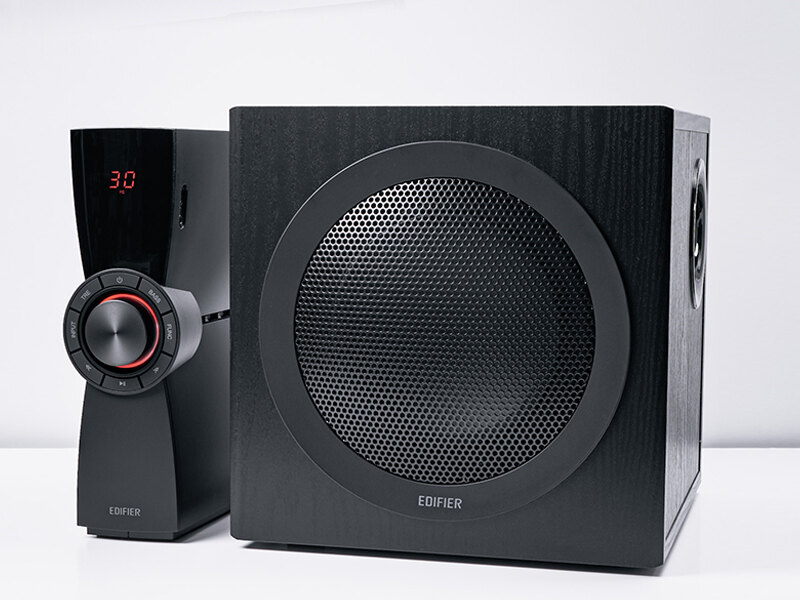

The CX7 pairs two satellite speakers with a ported 8-inch (203 mm) subwoofer in all-wood cabinets. Each satellite has a 3.5-inch mid-range driver and a 1-inch silk dome tweeter with a 2-way crossover. Total output is 12 W x 2 for the satellites plus 45 W RMS for the bass.

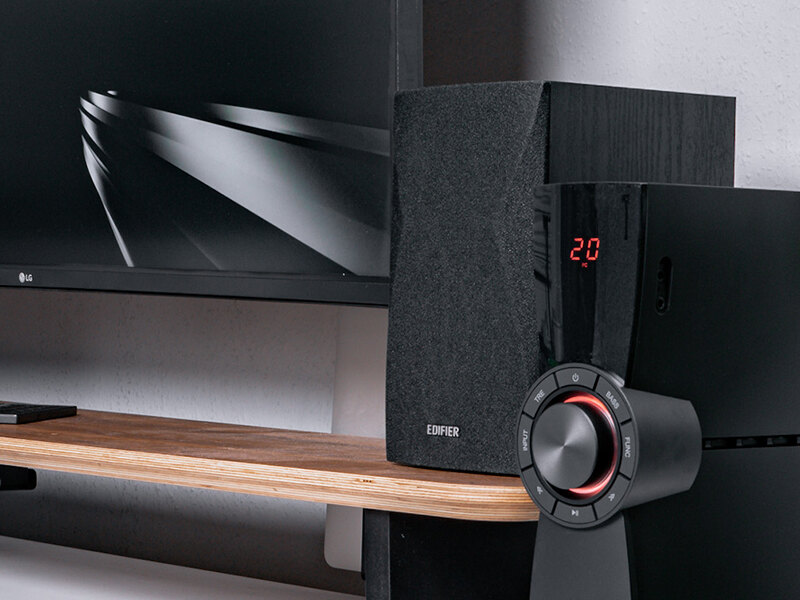

Two Class-D digital amplifiers handle the power, with speaker equalization and dynamic range compression (DRC) applied in the signal chain. A standalone console with a waisted shape carries the full control panel and a display that shows the current status. A remote control offers the same functions.

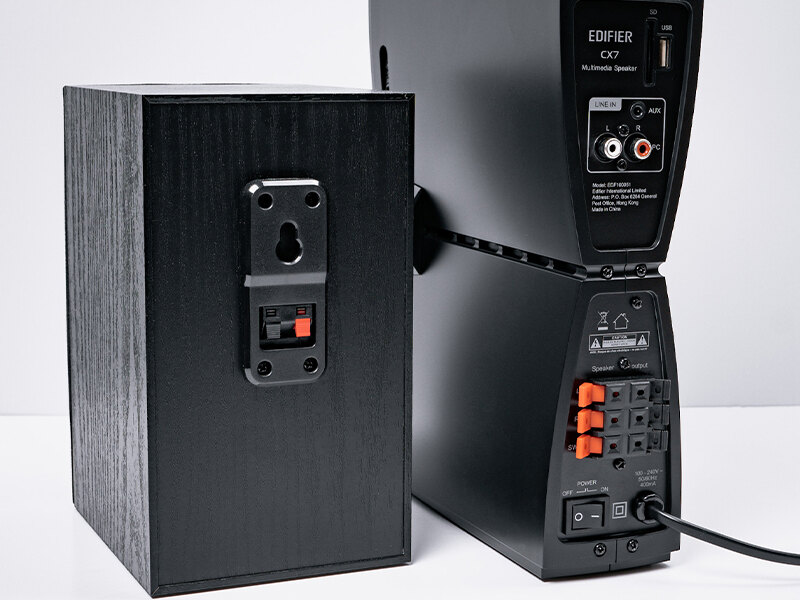

Sources connect through a PC input, AUX, USB drive, SD card or Bluetooth V5.0. The system measures 425 x 450 x 335 mm (W x H x D).
Video
Tehnilised andmed
- Bränd
- Edifier
- Mudel
- CX7
- Kategooria
- Hi-Fi ja kodune heli › Kõlarid
Audio
- Total output power (RMS)
- 12W×2 (Mid-Range / Treble) + 45W (Bass)
- Signal-to-noise ratio
- ≥ 80dB (A)
- Frequency response (satellites)
- 140Hz - 19kHz
- Frequency response (subwoofer)
- 45Hz - 130Hz
- Amplifier
- Dual Class-D digital amplifiers
- Signal processing
- Speaker equalization and DRC
Drivers
- Mid-range driver
- 3.5" / 89 mm
- Treble driver
- 1" / 25 mm silk dome
- Bass driver
- 8" / 203 mm
- Crossover
- 2-way
Inputs
- Audio inputs
- PC, AUX, USB, SD card, Bluetooth
- Input sensitivity PC (satellites)
- 700 ± 50mV
- Input sensitivity PC (subwoofer)
- 650 ± 20mV
- Input sensitivity AUX (satellites)
- 500 ± 50mV
- Input sensitivity AUX (subwoofer)
- 500 ± 20mV
Connectivity
- Bluetooth version
- V5.0
- Control
- Console control panel and remote control
Physical
- Dimensions (W x H x D)
- 425mm × 450mm × 335mm
- Cabinet
- All-wood subwoofer and satellite cabinets
