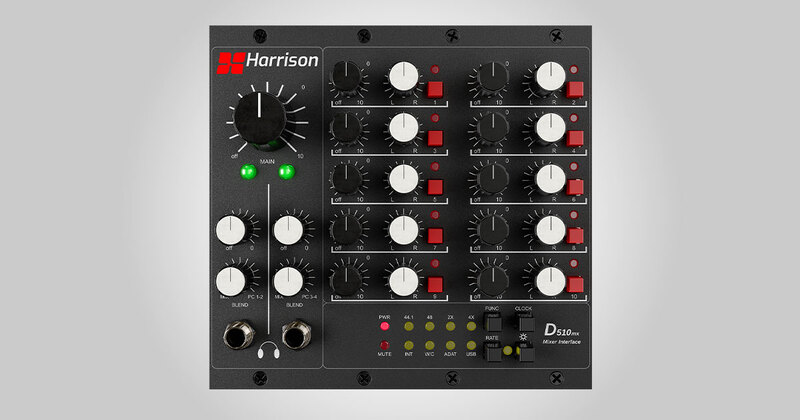

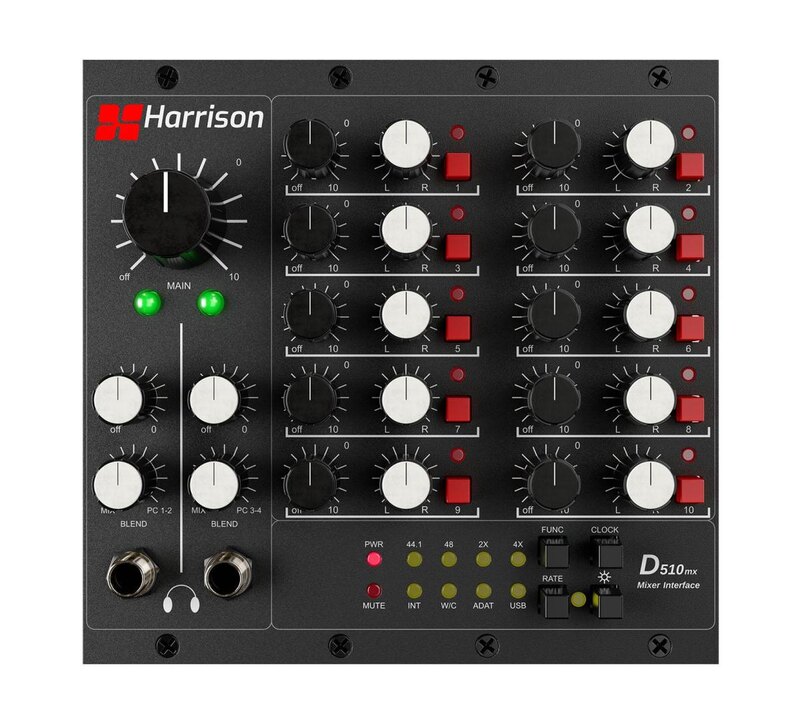

D510mx
The D510mx is a two-slot analog summing mixer module for the Harrison D510r ten-slot 500 Series rack. It turns the rack into a 10x2 stereo mixer with per-slot level and pan and dual headphone outputs, for engineers building portable tracking or mixing systems.
- Module for the Harrison D510r 500 Series rack
- Takes two rack slots; 10x2 analog summing mixer
- Level and pan control for each 500 slot
- Two analog inputs (9 and 10) alongside eight module slots
- Dual headphone outputs with MIX/PC blend

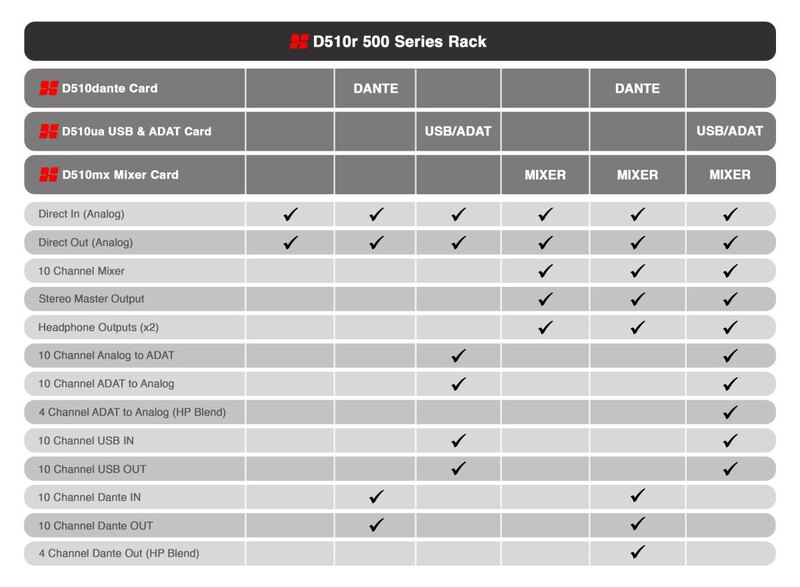

- Works with optional D510dante and D510usb interface cards
Fotod
6Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli D510mx, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

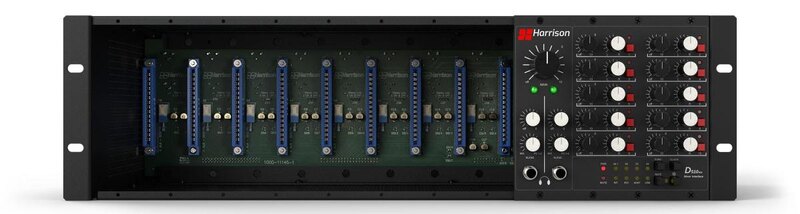

The D510mx fits into two slots of a D510r rack and adds a stereo mix bus fed by the eight remaining 500 Series module slots plus two analog inputs that feed slots 9 and 10. Each channel has its own level and pan control, so a stereo mixdown can be built directly from the modules installed in the rack. A dedicated control sets the level of the main mix output.
Two independent headphone outputs are included, each with a blend control that mixes between the analog MIX and PC sources. When the D510dante interface card is also fitted, the headphone feeds can carry monitor mixes taken from the direct analog output or from any device on the Dante network, such as DAW returns.

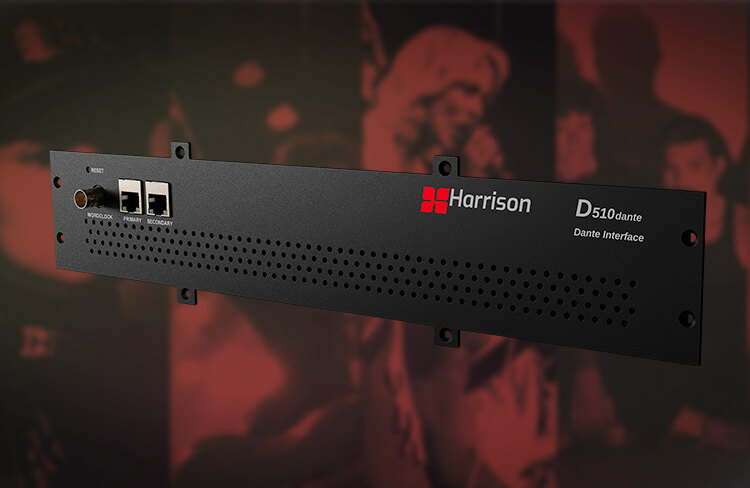

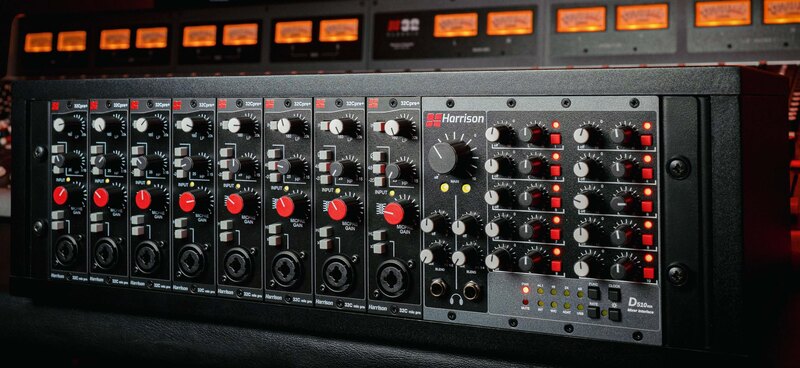

Digital connectivity comes from the optional D510dante (Dante AoIP) and D510usb interface cards, which are fitted in the same system. Combined with a D510r, the module can form an eight-channel tracking setup in a 3U enclosure.
Video
Tehnilised andmed
- Bränd
- Harrison Audio
- Mudel
- D510mx
- Kategooria
- Stuudio › Eelvõimendid ja välisseadmed
Mixer
- Mixer format
- 10x2 analog summing mixer
- Mix sources
- Eight 500 Series module slots plus two analog inputs (9 & 10)
- Channel controls
- Level and pan on each channel
- Main output control
- Dedicated 'MAIN' mix output control
Inputs
- Analog inputs
- 2 (to slots 9 and 10)
- Module slot inputs
- 8 remaining 500 Series slots
Outputs
- Stereo mix output
- Main mix output with dedicated control
- Headphone outputs
- 2, independent
- Headphone blend
- Blend between MIX and PC
Connectivity
- Dante AoIP
- Via optional D510dante interface card
- USB
- Via optional D510usb interface card
- Dante monitor mixes
- Headphone mixes from analog output or Dante network devices (with D510dante)
Physical
- Host rack
- Harrison D510r ten-slot 500 Series rack
- Slots occupied
- 2 slots of the D510r
- Rack height with D510r
- 3U
- Tracking capacity
- Eight-channel tracking system with D510r
