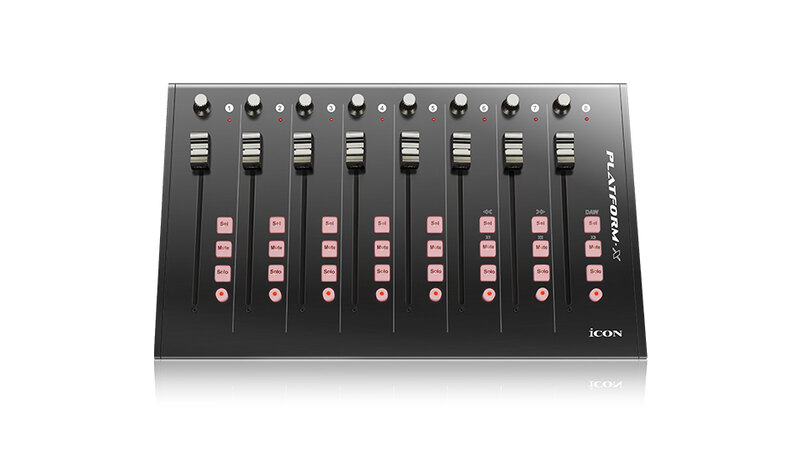

Platform X
Eight-channel fader extender for the Platform M modular DAW control surface, usable alongside it or as a standalone fader bank. It suits home and project studios that want touch-sensitive motorized faders for mixing in a DAW.
- 8 touch-sensitive motorized faders, 10-bit resolution
- 8 dual-function encoders (rotate and push)
- Extends Platform M; up to 3 units for 32 channels
- Works standalone without a Platform M
- Mackie Control and Mackie HUI (Pro Tools) support
- USB 2.0 high speed; 12V/2.5A adapter included
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli Platform X, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
Platform X adds eight touch-sensitive motorized faders with 10-bit resolution to a Platform M control surface. Up to three units can be attached to a Platform M, giving a 32-channel setup. It can also be used on its own as a fader bank when the transport section of the Platform M is not needed.
Each channel has a dual-function encoder (rotate and push) and illuminated Select, Mute, Solo and Record buttons. The unit uses the Mackie Control protocol for Cubase, Nuendo, Samplitude, Logic Pro, Studio One, Bitwig, Reason and Ableton Live, and Mackie HUI for Pro Tools. A Quick-Setup driver is offered for Cubase, Nuendo, Reason and Bitwig. Optional Platform D or D2 displays can show track names and parameters.
It connects over USB 2.0 high speed and is powered by an included 12V/2.5A adapter. The iMap software for mapping MIDI functions is included, and firmware can be updated over USB through iMap. The housing is metal with a Kensington lock port. This is a legacy device that relies on 32-bit software, so it may not work on all modern 64-bit computers.
Video
Tehnilised andmed
- Bränd
- iCON
- Mudel
- Platform X
- Kategooria
- Süntesaatorid ja klaviatuurid › MIDI-klaviatuurid ja kontrollerid
Controls
- Motorized faders
- 8, touch-sensitive
- Fader resolution
- 10-bit
- Encoders
- 8 dual-function (rotate and enter)
- Channel buttons
- Sel, Mute, Solo, Record (illuminated)
Expansion
- Role
- 8-channel extender for Platform M
- Maximum system size
- 32 channels (3 Platform X units and a Platform M)
- Standalone use
- Yes, without Platform M
- Optional displays
- Platform D or Platform D2
Connectivity
- USB
- USB 2.0 high speed
- Class compliance
- Class-compliant
- Firmware update
- Via USB with iMap software
Software
- Mackie Control
- Cubase, Nuendo, Samplitude, Logic Pro, Bitwig, Studio One, Ableton Live, Reason
- Mackie HUI
- Pro Tools
- Quick-Setup driver
- Cubase, Nuendo, Reason, Bitwig
- Mapping software
- iMap included
Compatibility
- macOS
- OS X 10.11 El Capitan to macOS 14 Sonoma
- Windows
- Windows 7 - Windows 11
Power
- Power adapter
- 12V/2.5A, included
Physical
- Casing
- Metal
- Security
- Kensington lock port
