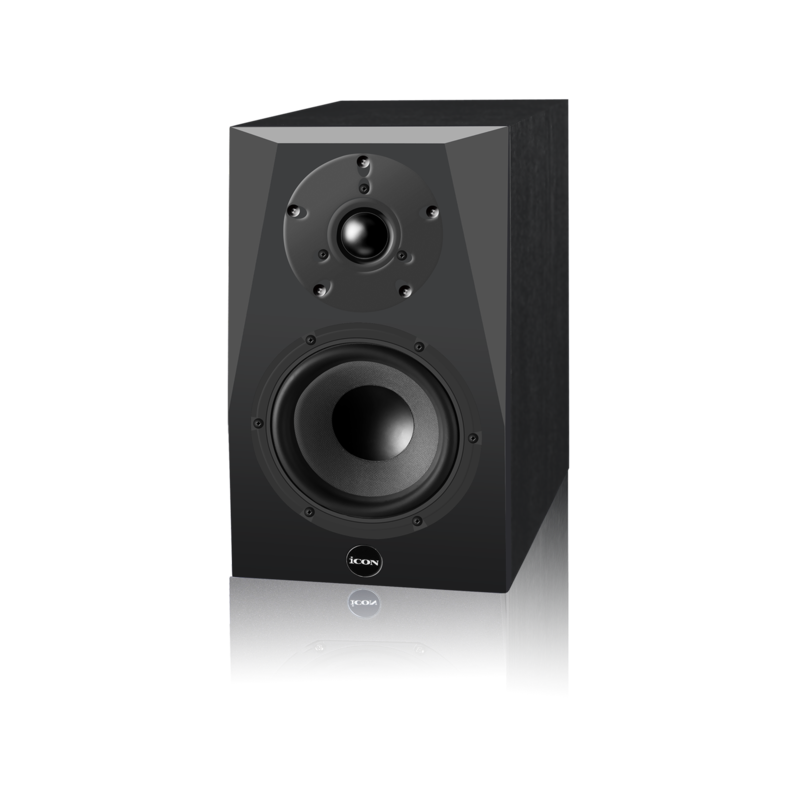

PX-T5A G2
Compact active two-way near-field studio monitor with a 5.5-inch woofer and 1-inch dome tweeter, powered by a built-in bi-amp module. It suits recording and broadcast rooms and works in stereo or multichannel setups.
- Active 2-way near-field monitor
- 5.5" polypropylene woofer, 1" soft dome tweeter
- Built-in bi-amp: 60W LF, 30W HF
- R-Type transformer for clean output
- High, mid and low contour controls
- High-pass filter: Flat, 60Hz or 80Hz
Fotod
6Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli PX-T5A G2, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The PX-T5A G2 is a self-powered two-way monitor built around a 5.5-inch polypropylene woofer with a paper dustcap and a 1-inch soft fabric dome tweeter. An internal bi-amp module supplies 60W to the low-frequency driver and 30W to the high-frequency driver, with an active crossover splitting the signal between them. An R-Type transformer is used to keep the output clean.
Tone can be adjusted with high, mid and low range contour controls, and a selectable high-pass filter offers Flat, 60Hz or 80Hz settings. The woofer uses a low-loss SBR surround, a progressive spider, a dual ferrite magnet system and a die-cast aluminum chassis designed for open airflow. The tweeter has a wide-dispersion dome geometry and a ferrofluid-free magnet system.
The cabinet has a diffraction-optimized front baffle with extended dimensions to limit enclosure vibration and sound radiation. The monitors are intended for near-field use and can be set up in stereo or multichannel configurations. Vasorb monitor stands are included.
Tehnilised andmed
- Bränd
- iCON
- Mudel
- PX-T5A G2
- Kategooria
- Stuudio › Stuudiomonitorid
Audio
- Type
- Active 2-way monitor system
- Crossover
- Active crossover
- Transformer
- R-Type transformer
- Woofer
- 5.5″ polypropylene cone with paper dustcap
- Tweeter
- 1″ soft fabric dome
- Woofer surround
- Low loss SBR
- Woofer magnet system
- Dual ferrite magnet with extended height
- Woofer chassis
- Die-cast aluminum
- Tweeter magnet system
- Ferrofluid-free
Power
- Amplifier
- Built-in bi-amp power module
- LF amplifier power
- 60W
- HF amplifier power
- 30W
Controls
- Contour control
- High, mid and low range
- High-pass filter
- Flat, 60Hz or 80Hz selectable
Physical
- Baffle
- Diffraction-optimized front baffle with extended dimensions
- Damping material
- Premium absorbing material
In the box
- Monitor stands
- Vasorb monitor stands included
- Documentation
- User manual (English) available for download
