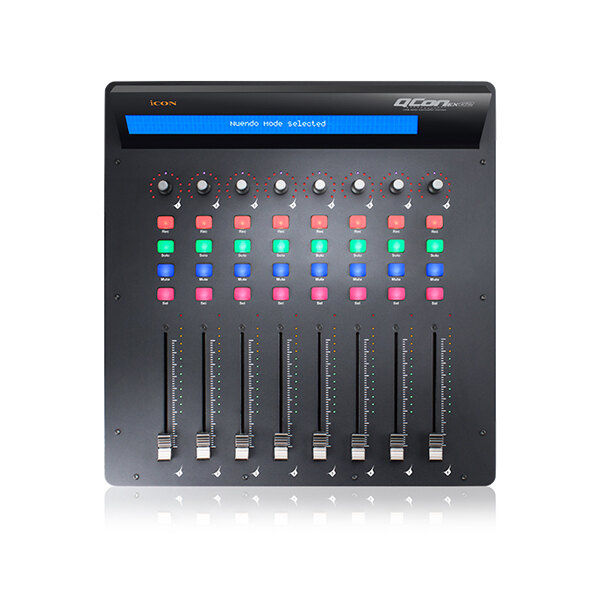

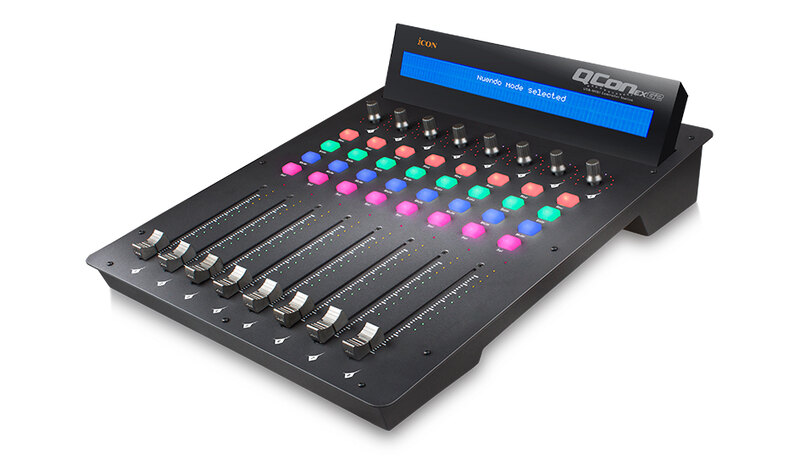

QConEX G2
Eight-channel extender for the QCon Pro G2 control surface, adding motorized faders, push encoders and metering to a DAW setup. Aimed at studios that need more tactile channels when tracking and mixing.
- 8 touch-sensitive motorized faders plus a master fader
- 8 push encoders with 11-segment LED rings
- Mackie Control and HUI emulation
- Class-compliant USB 2.0 high speed connection
- Expandable to 64 channels, depending on DAW
- Includes Bitwig Studio 8-Track and plugin bundles
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli QConEX G2, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The QCon EX G2 adds eight channels to a QCon Pro G2 control surface. Units can be chained in groups of eight to reach 16, 24, 32 and up to 64 channels, depending on how many extenders the DAW supports. It provides hands-on control of levels, EQ and effects, plus automation recording and punch in/out.
Each unit has eight touch-sensitive motorized faders and a ninth for the master channel. It also has eight dual-function push encoders, each ringed by an 11-segment LED, and 12-segment LED level meters per channel. A large backlit LCD shows channel names and parameter values. Two foot pedal connectors are fitted, and the casing is aluminum and metal with a Kensington lock port.
It works with Mackie Control or HUI emulation and has presets for many DAWs, including Cubase/Nuendo, Logic Pro, Ableton Live, Pro Tools, Studio One and Reaper. A User Defined mode and iMap MIDI-learn software allow custom mapping. It connects over class-compliant USB 2.0 high speed, and firmware updates are made over USB through iMap. Bitwig Studio 8-Track and several plugin bundles are included.
Tehnilised andmed
- Bränd
- iCON
- Mudel
- QConEX G2
- Kategooria
- Stuudio › Muu stuudiotehnika
Controls
- Motorized faders
- 8 touch-sensitive channel faders
- Master fader
- 1 touch-sensitive motorized fader
- Encoders
- 8 x dual function (enter & rotate)
- Encoder LED ring
- 11-segment LED around each encoder
- Channel expansion
- Increments of 8 channels, up to 64 channels depending on DAW
Display and metering
- Level meters
- 12-segment LED per channel
- Display
- Large backlit LCD for channel names and control values
Connectivity
- Computer connection
- USB 2.0 high speed, class-compliant

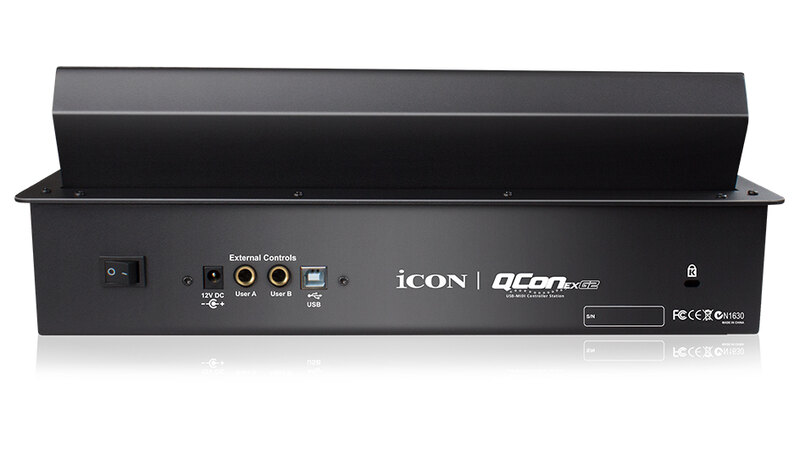

- Foot pedal connectors
- 2
- Security
- Kensington lock port
- Firmware update
- Via USB connection and iMap software
Control protocols
- Emulation
- Mackie Control and HUI Universal
- MIDI mapping
- iMap self MIDI mapping software with MIDI Learn mode
- Custom presets
- User Defined mode
Compatibility
- macOS
- OS X 10.11 El Capitan to macOS 26 Tahoe
- Windows
- Windows 10 (64-bit), Windows 11
- Processors
- Intel and Apple Silicon Mac; Intel and AMD PC
- iOS / iPadOS
- iOS 11 or later
Physical
- Casing
- Aluminum and metal
In the box
- DAW software

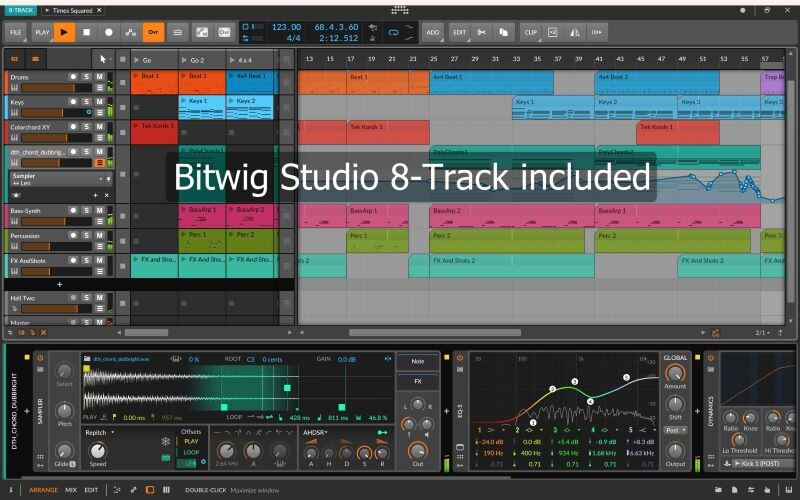

- Bitwig Studio 8-Track
- Plugins and collections

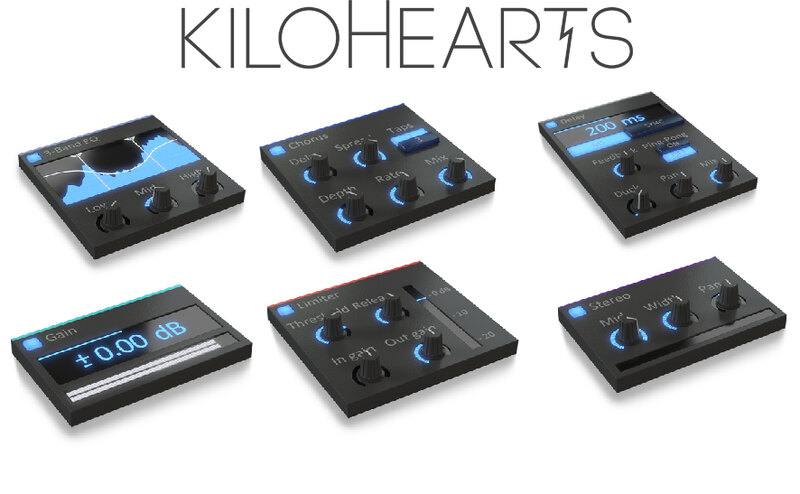

- Dotec audio plugins, Tracktion DAW Essentials Collection, Kilohearts Toolbox, Harrison 32c Vocal Intensity Processor
