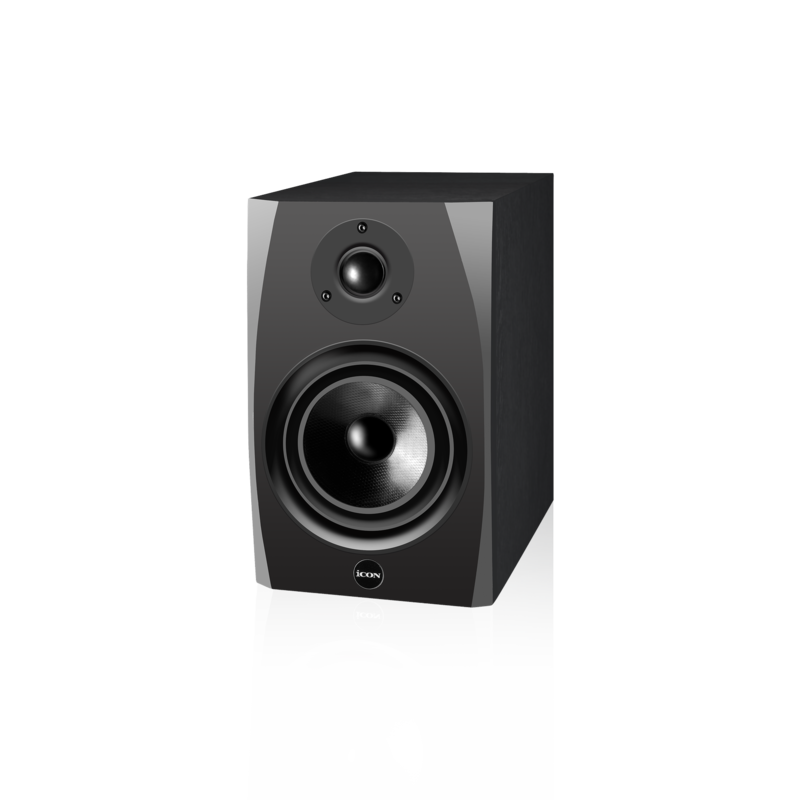

SX-5A
Two-way active studio monitor with a 1" silk dome tweeter and 5.5" woofer in a ported MDF cabinet, powered by a built-in bi-amp module. Aimed at project studios, post-production and multimedia work.
- Two-way active monitor, ported enclosure
- 1" silk dome tweeter with neodymium magnet
- 5.5" copolymer woofer with butyl surround
- Bi-amp: HF 30W / LF 60W
- Balanced XLR and unbalanced RCA inputs
- A/V shielded, solid MDF cabinet
Fotod
5Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli SX-5A, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The SX-5A is a compact two-way powered reference monitor. A 1-inch silk dome tweeter with a neodymium magnet handles the highs, with a heat sink and ferrofluid cooling, while a 5.5-inch copolymer woofer with a butyl surround covers the lows. The enclosure is ported and made of MDF.
An onboard bi-amp module drives each driver separately, rated at 30W for the high-frequency driver and 60W for the low-frequency driver. A multi-pole active crossover splits the signal between the two drivers.
Inputs are a balanced XLR and an unbalanced RCA, which suit both -10 dBV and +4 dB sources. The cabinet is audio/video shielded so it can sit near computer CRT monitors, and rubber monitor feet are supplied. User manuals are offered in seven languages.
Video
Tehnilised andmed
- Bränd
- iCON
- Mudel
- SX-5A
- Kategooria
- Stuudio › Stuudiomonitorid
Audio
- Design
- Two-way active studio reference monitor
- Enclosure type
- Ported, tuned enclosure
- Tweeter
- 1" silk dome, neodymium magnet
- Tweeter cooling
- Heat sink and ferrofluid
- Woofer
- 5.5" copolymer, butyl surround
- Crossover
- Active, multi-pole design
Power
- Amplification
- Built-in bi-amp power module
- HF amplifier power
- 30W
- LF amplifier power
- 60W
Inputs
- Balanced input
- XLR
- Unbalanced input
- RCA
- Input sensitivity options
- -10 dBV or +4 dB sources
Physical
- Cabinet material
- Solid MDF
- Shielding
- A/V shielded for use near computer CRT monitors
- Feet
- Vasorb monitor rubber feet
In the box
- Included accessories
- Vasorb monitor rubber feet
- Manual languages
- English, French, German, Italian, Japanese, Spanish, Russian
