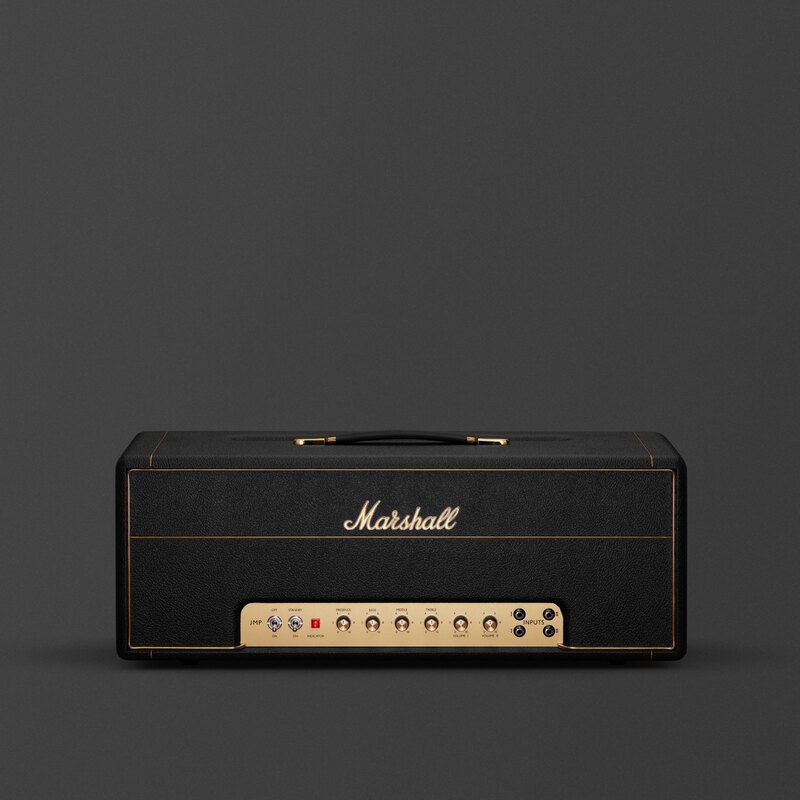

1959 Handwired Head
A 100W all-valve two-channel guitar amp head, handwired in the UK, modelled on the 1959 Super Lead of the late 1960s. Aimed at guitarists who want classic plexi-style crunch and enough volume for large venues.
- 100W all-valve head, handwired in the UK
- 4 x EL34 power valves, 3 x ECC83 in the preamp
- Two bridgeable channels, 4 instrument inputs
- 2 speaker outputs, selectable 16Ω / 8Ω / 4Ω
- No effects loop, no onboard effects
- Weighs 21.4 kg
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli 1959 Handwired Head, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

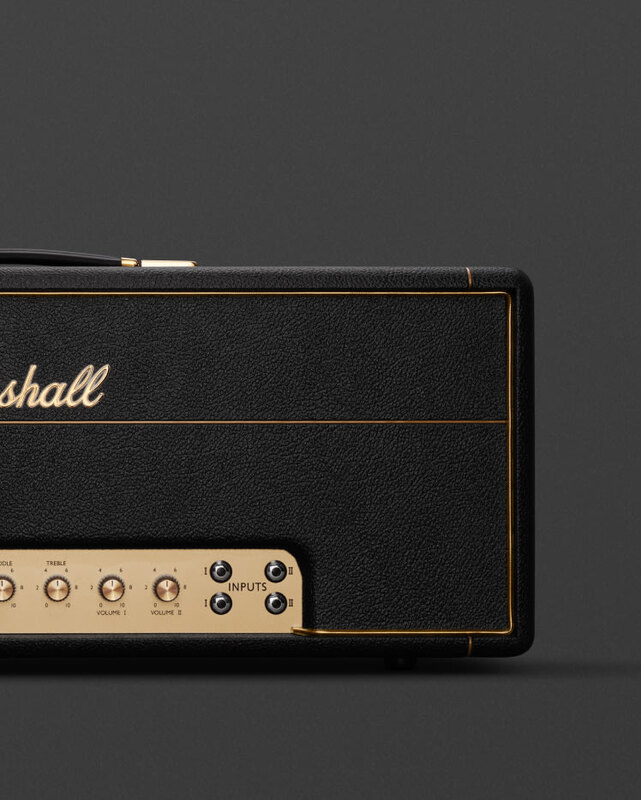

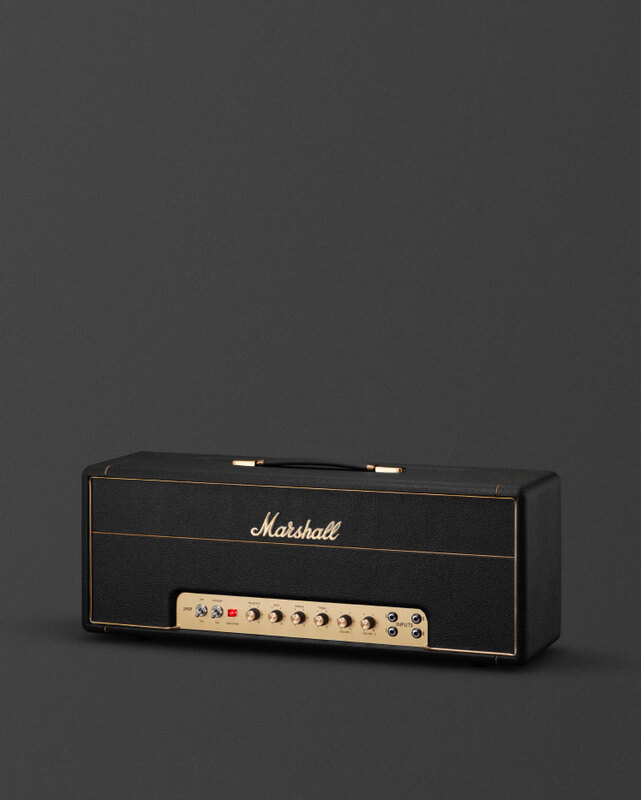

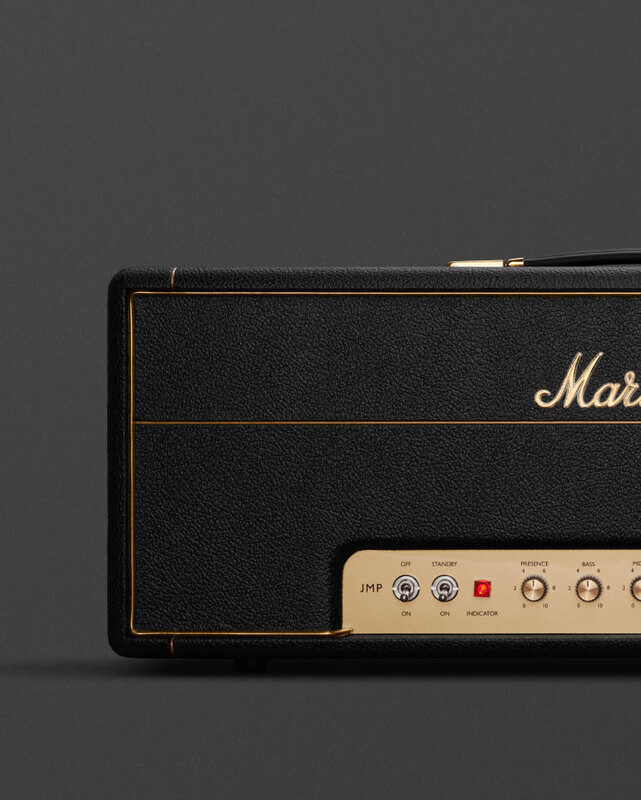

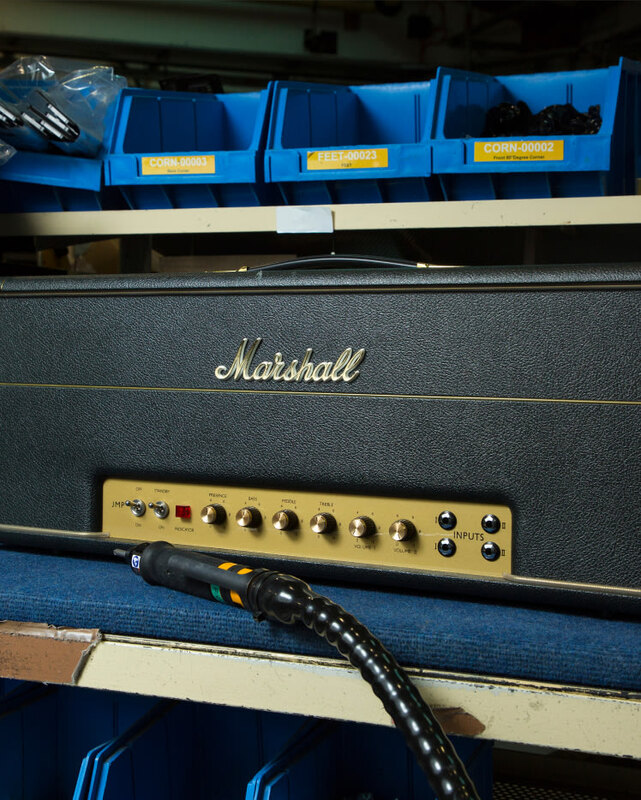

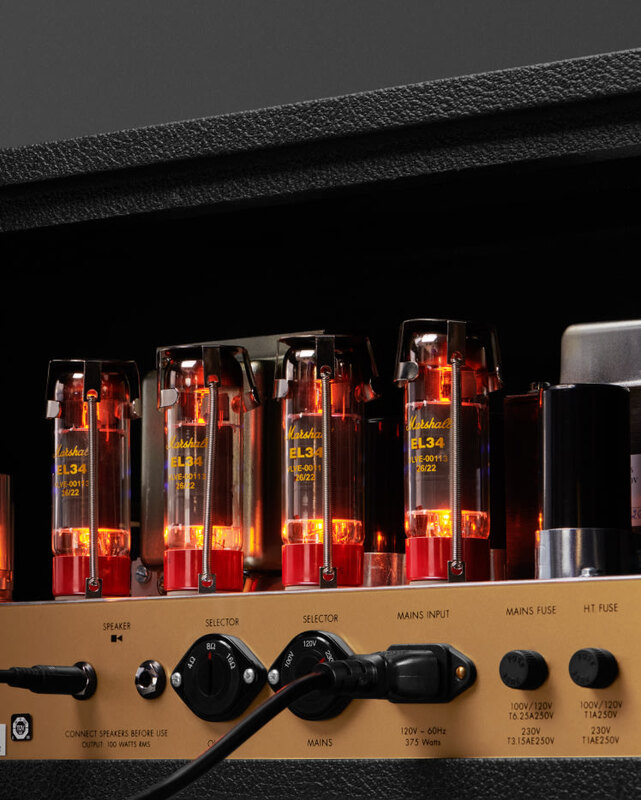

The 1959 Handwired is a re-issue of the classic Marshall Super Lead head, built by hand at the maker's factory in Bletchley, England. It is an all-valve design with a 100W output stage using four EL34 power valves, and two ECC83 preamp valves plus an ECC83 phase splitter.
The amp has two bridgeable channels, each with high and low sensitivity inputs, giving four 1/4" instrument inputs in total. Blending the two voices lets the player shape their own sound. Tone is controlled with Volume I, Volume II, treble, middle, bass and presence. There are no built-in effects and no effects loop.
Two 1/4" speaker outputs connect extension cabinets, with a selectable load of 16Ω, 8Ω or 4Ω. The head is finished in black, weighs 21.4 kg and ships with a detachable power cable.
Video
Tehnilised andmed
- Bränd
- Marshall
- Mudel
- 1959 Handwired Head
- Kategooria
- Kitarrid ja bassid
General
- Model
- 1959HW
- Range
- Handwired
- Technology
- Valve
- Channels
- 2, bridgeable
- Colour
- Black
Audio
- Output wattage
- 100W
- Controls
- Volume I, volume II, treble, middle, bass, presence
- Effects
- None
- Effects loop
- No
Valves
- Preamp valves
- 2 x ECC83, 1 x ECC83 (phase splitter)
- Power amp valves
- 4 x EL34
Inputs
- Instrument inputs
- 4 x 1/4" jack (high/low sensitivity)
Outputs
- Speaker outputs
- 2 x 1/4" jack, selectable 16Ω / 8Ω / 4Ω load
Physical
- Weight
- 21.4 kg / 47 LB
- Width
- 740 mm / 29.1"
- Height
- 305 mm / 12"
- Depth
- 210 mm / 8.3"
- Country of origin
- Designed and engineered in UK. Made in UK.
In the box
- Box contents
- Detachable power cable supplied
