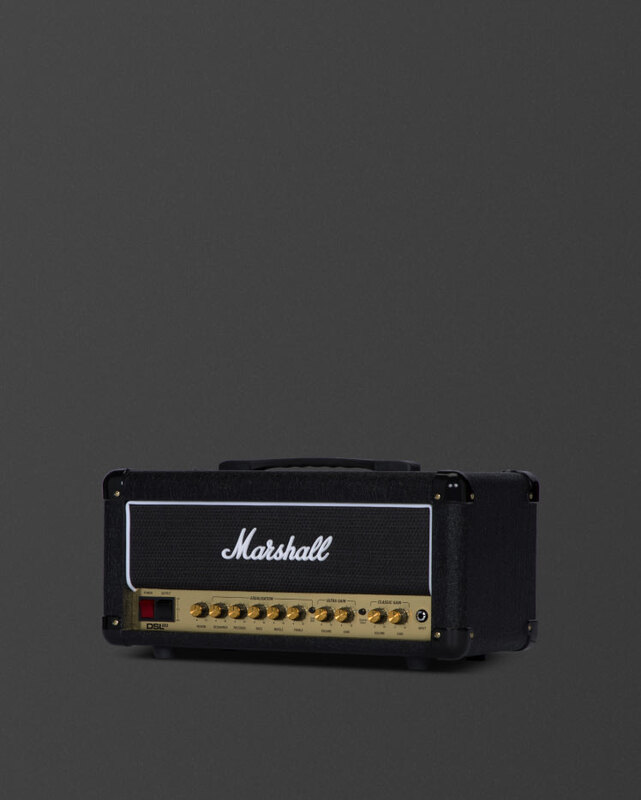

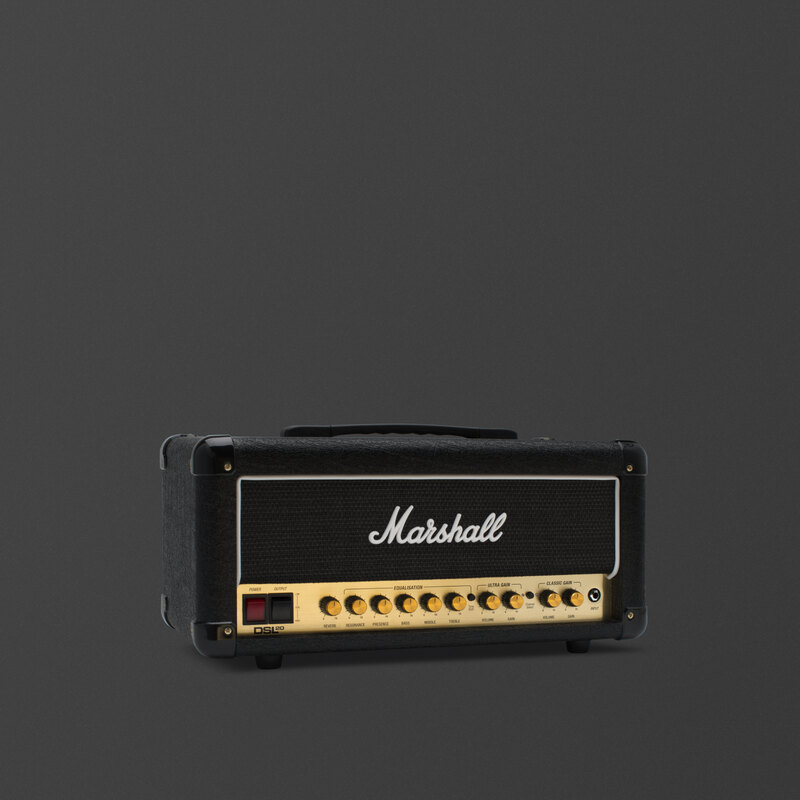

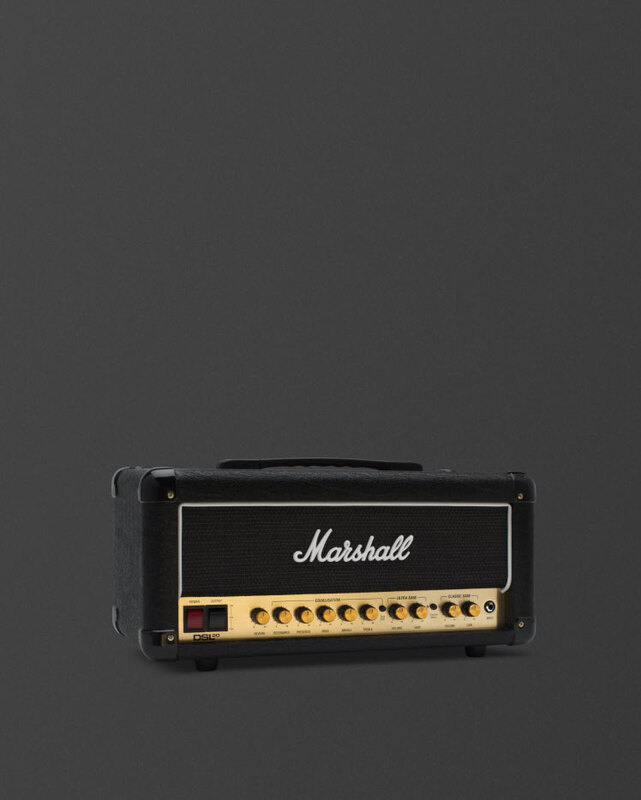

DSL20 Head
The DSL20 Head is a two-channel, all-valve 20W guitar amplifier head with a switchable 10W mode, digital reverb and a series effects loop. It suits guitarists who want a compact, portable valve amp for rehearsal, home use and recording.
- Two channels: Classic Gain and Ultra Gain
- All-valve design with 2 x EL34 power valves
- 20W output, switchable down to 10W
- Three 1/4" speaker outputs for 16Ω or 8Ω loads
- 3.5mm emulated line out for recording
- Digital reverb and 1 x series effects loop
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli DSL20 Head, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

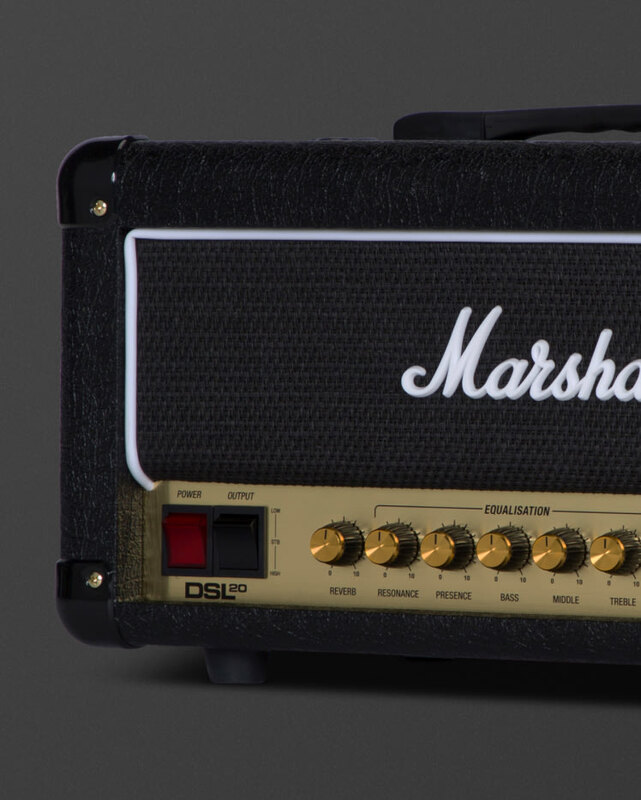

The DSL20 Head is a two-channel valve amplifier head with Classic Gain and Ultra Gain channels, each with its own gain and volume controls. A channel select switch and a tone shift switch change between the voicings, and shared treble, middle, bass, presence and reverb controls shape the sound. Reverb is digital, and the head also has dedicated resonance and presence features.
The power stage uses two EL34 valves and is rated at 20W. A switch lowers the output to 10W for quieter playing at home. The preamp uses two ECC83 valves, with a further ECC83 as the phase splitter. A single series effects loop is fitted.

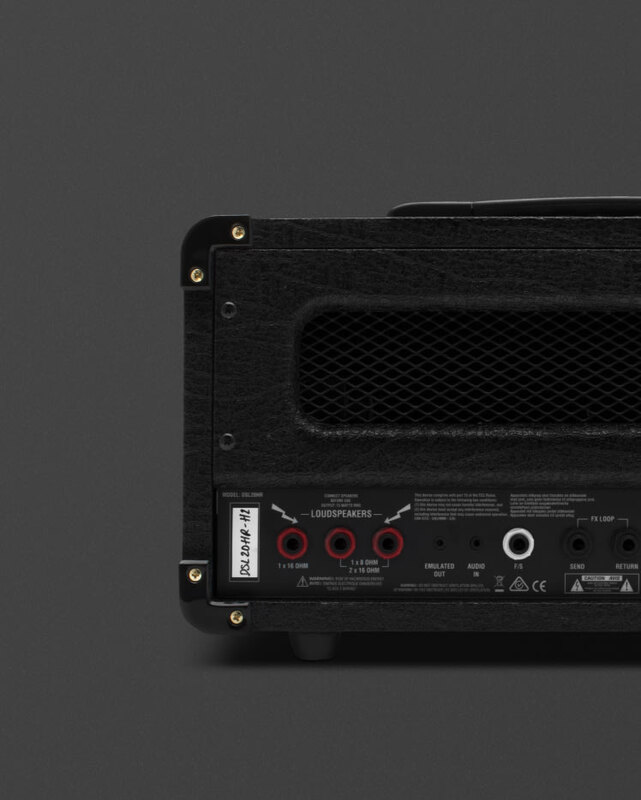

There are three 1/4" speaker outputs for 16Ω or 8Ω loads and a 3.5mm emulated line output for recording. Inputs are a 1/4" instrument jack and a 3.5mm jack that serves as aux in and footswitch connection. The unit weighs 9.7 kg and comes in black with a detachable power cable.
Video
Tehnilised andmed
- Bränd
- Marshall
- Mudel
- DSL20 Head
- Kategooria
- Live-heli › Võimendid
General
- Model
- DSL20HR
- Range
- DSL
- Channels
- 2
- Technology
- Valve
- Colour
- Black
Audio
- Output wattage
- 20W (with power reduction option to 10W)
- Preamp valves
- 2 x ECC83, 1 x ECC83 (phase splitter)
- Power amp valves
- 2 x EL34
- Effects
- Digital reverb
- Effects loop
- Yes, 1 x series
Controls
- Controls
- Classic Gain channel gain and volume, channel select switch, Ultra Gain channel gain and volume, tone shift switch, treble, middle, bass, presence, reverb
Inputs
- Instrument input
- 1 x 1/4" instrument jack
- Aux in / footswitch
- 1 x 3.5mm jack
Outputs
- Speaker outputs
- 3 x 1/4" jack sockets (16Ω load / 8Ω load)
- Line out
- 1 x 3.5mm jack emulated line out
Physical
- Weight
- 9.7 kg / 21 LB
- Width
- 500 mm / 19.7"
- Height
- 250 mm / 9.8"
- Depth
- 240 mm / 9.4"
- Country of origin
- Designed and engineered in UK. Made in Vietnam.
In the box
- Footswitch
- PEDL-90012 included
- Power cable
- Detachable power cable included
