SourcePoint V10

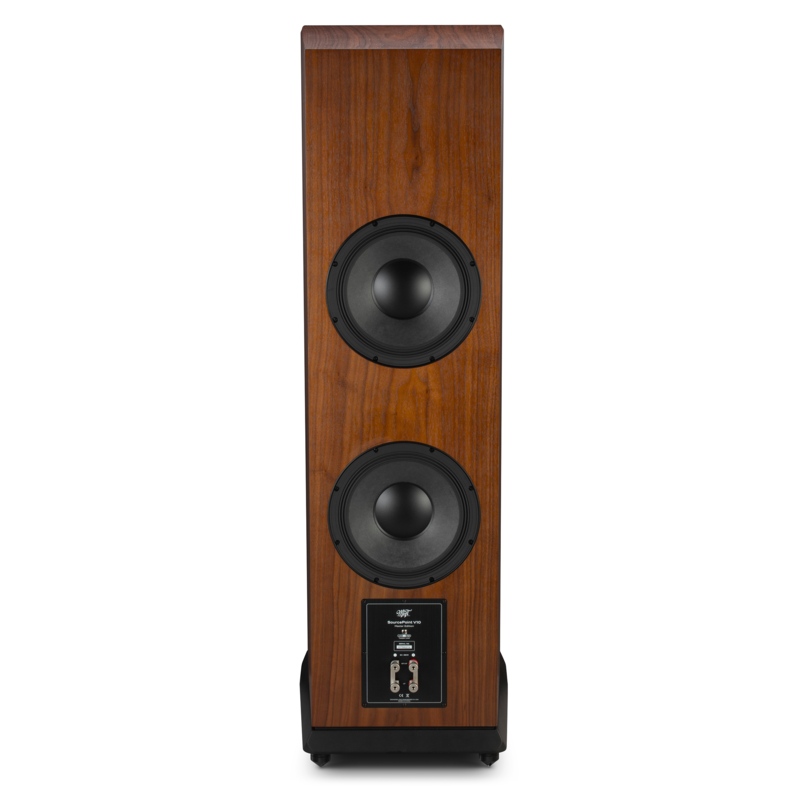

Each cabinet combines a concentric 10-inch paper-cone midrange with a 1.25-inch soft-dome tweeter, two 10-inch paper-cone woofers and two rear-firing 10-inch passive radiators. The passive radiators handle the lowest frequencies, reaching down to 27 Hz, so the woofers work within a more comfortable range. The cabinet is multi-chambered and stiffened to limit resonance.

The crossover is user-tunable: onboard switches set the treble level to suit the room and listening taste. It is built from polypropylene film capacitors, metalized-film resistors and air-core inductors, with crossover points at 130 Hz and 1.4 kHz. The front baffle has multiple angled facets around the drivers to reduce edge diffraction and give even dispersion.

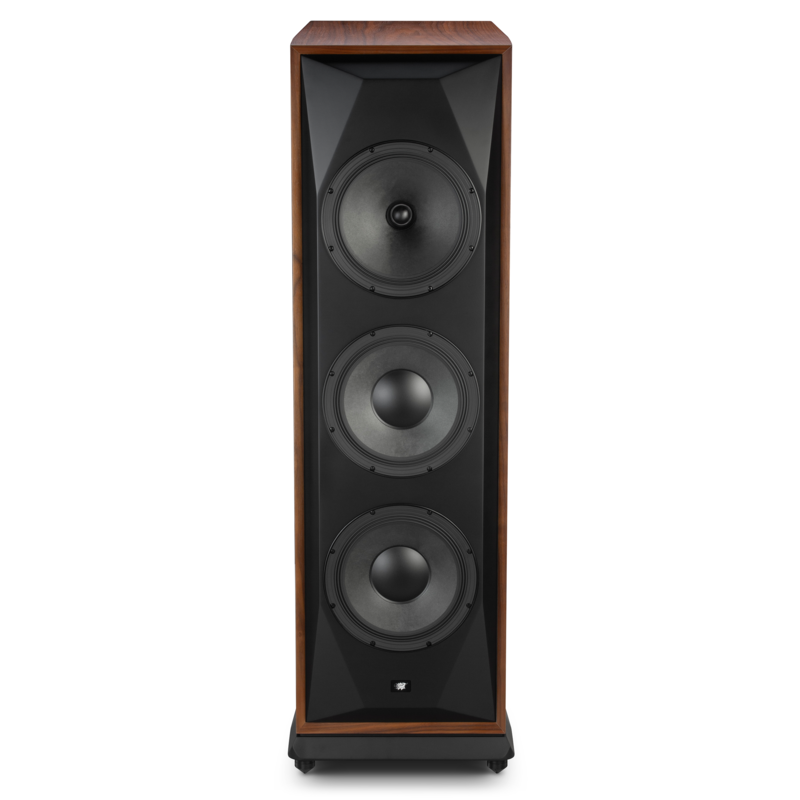

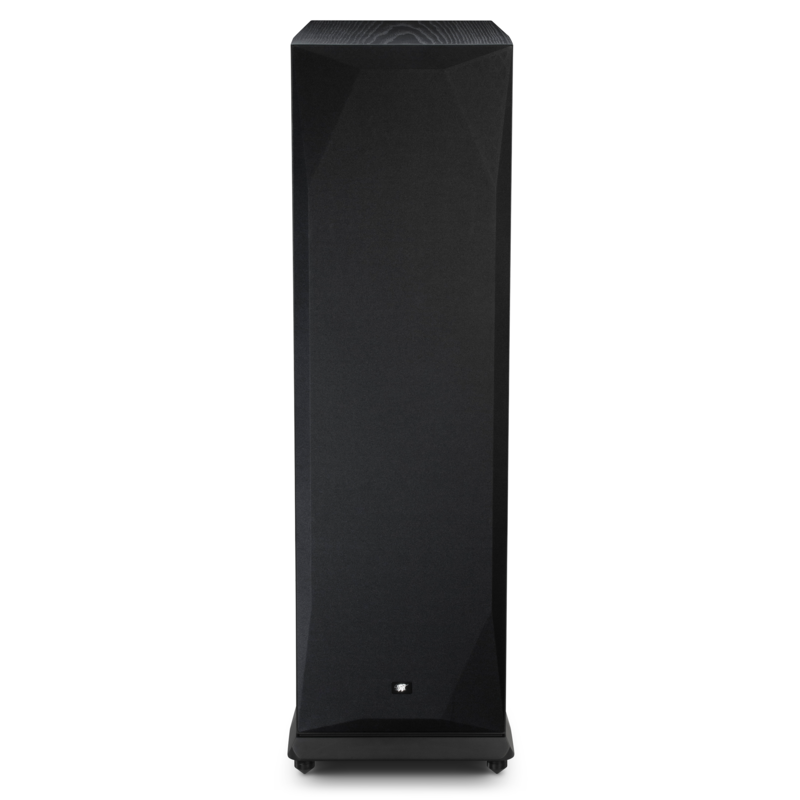

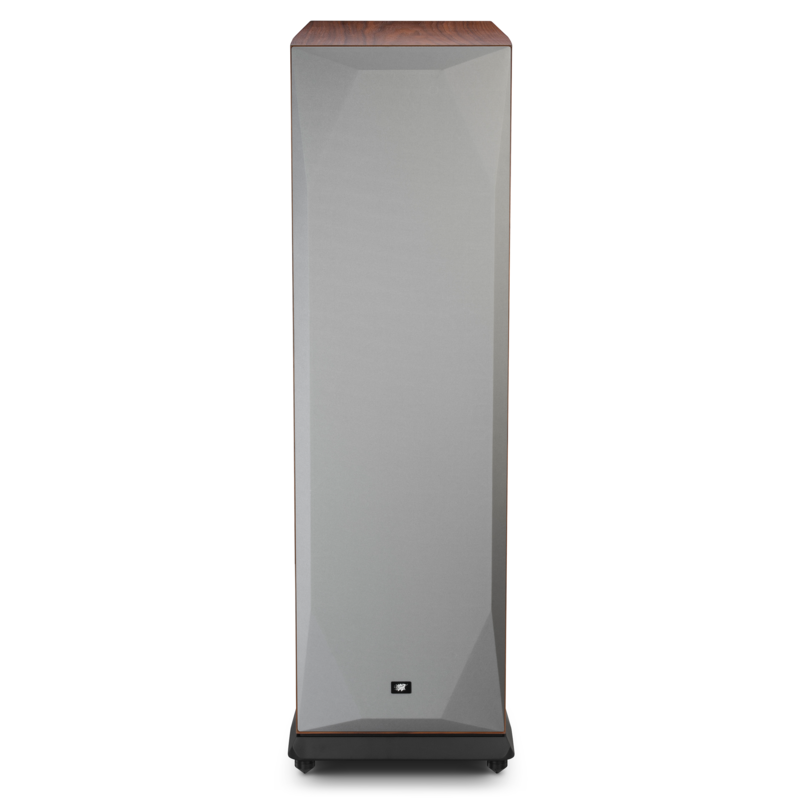

The speakers are passive and are driven by an external amplifier. Sensitivity is 91 dB and nominal impedance is 6 ohms, with a 4.5 ohm minimum. Fabric-wrapped grilles attach magnetically, though removing them is recommended for critical listening. Finishes are book-matched Walnut or Black Ash real-wood veneer with a satin clear coat.
