StudioTracker

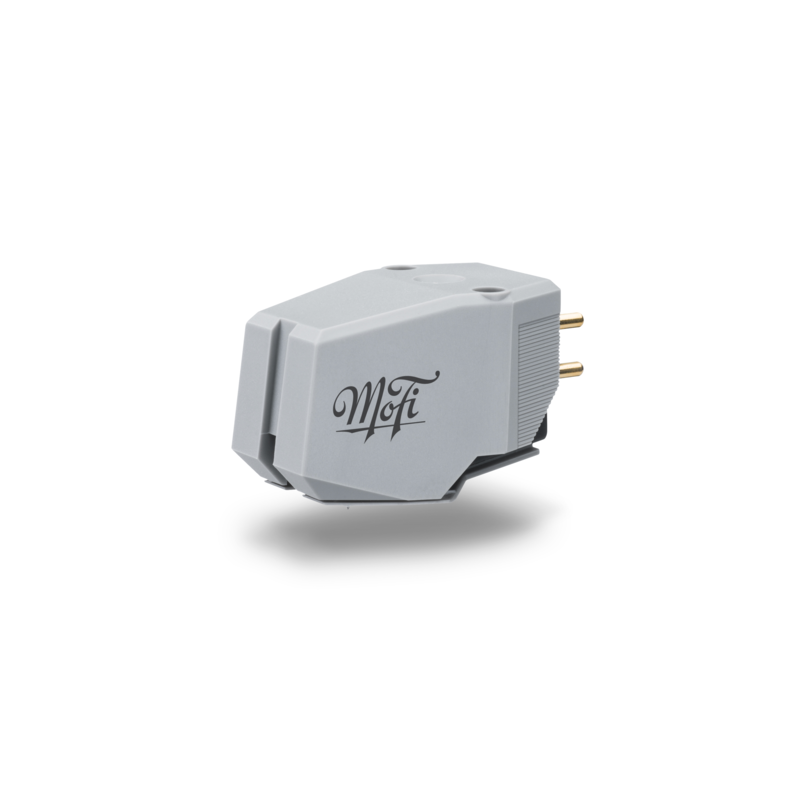

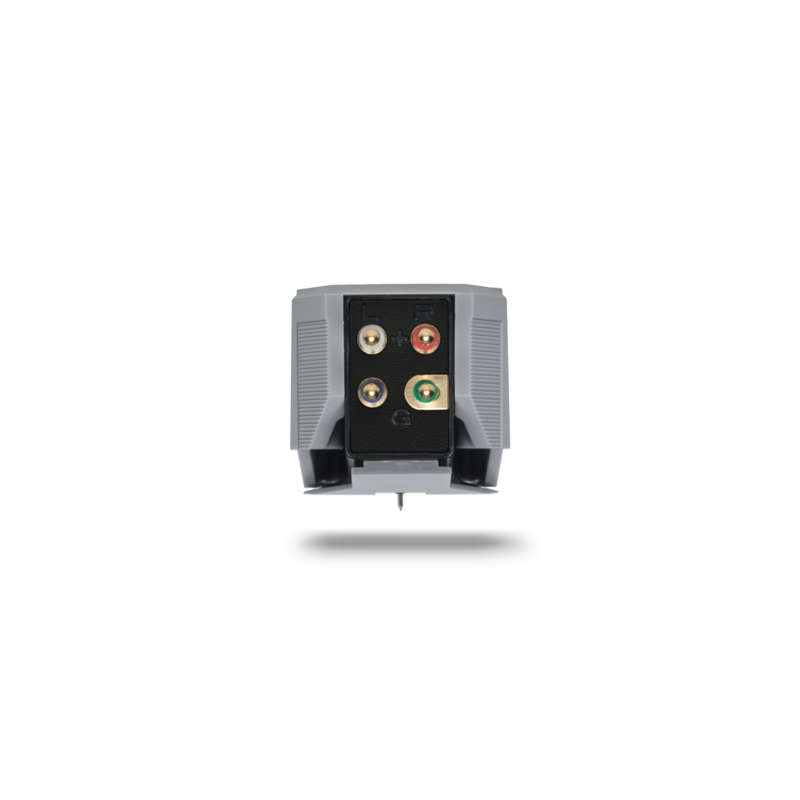

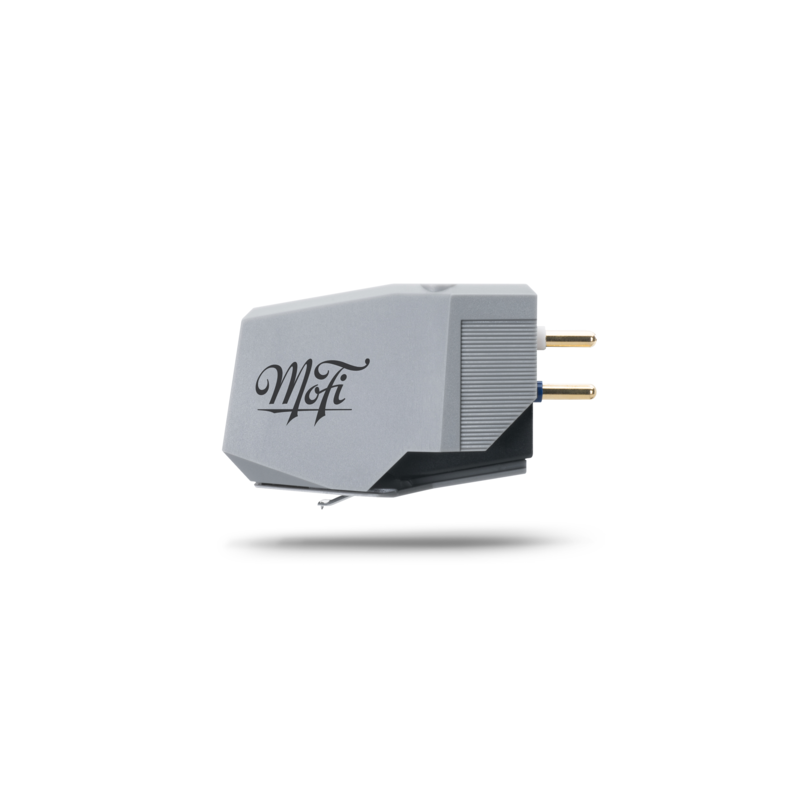

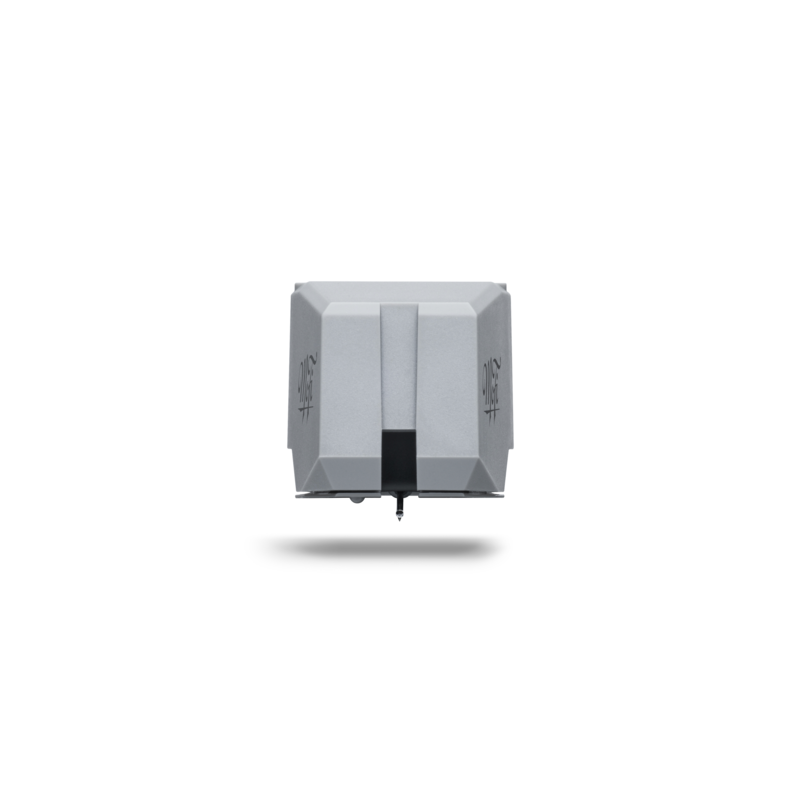

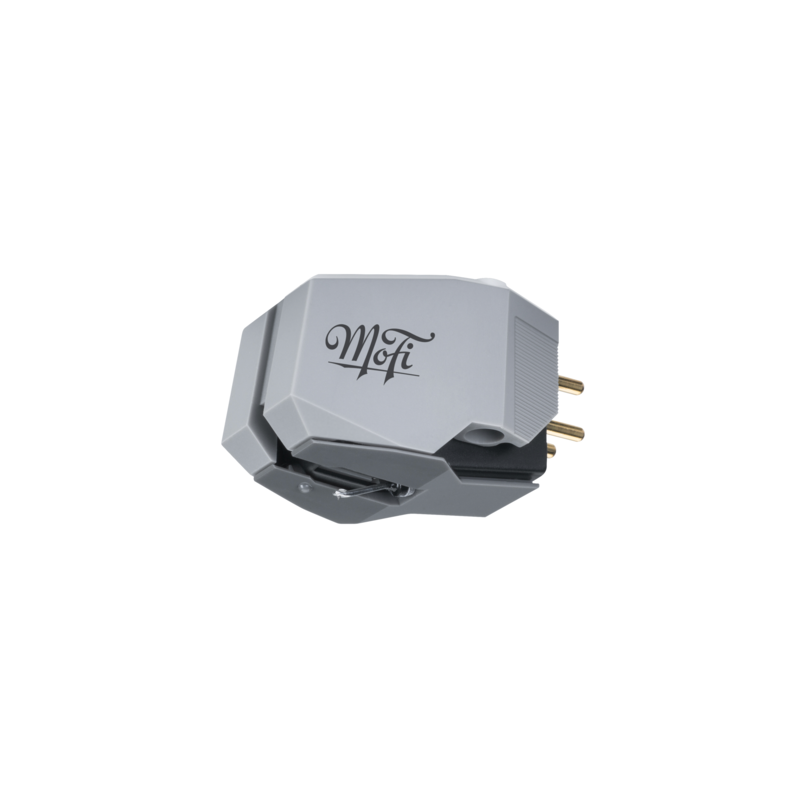

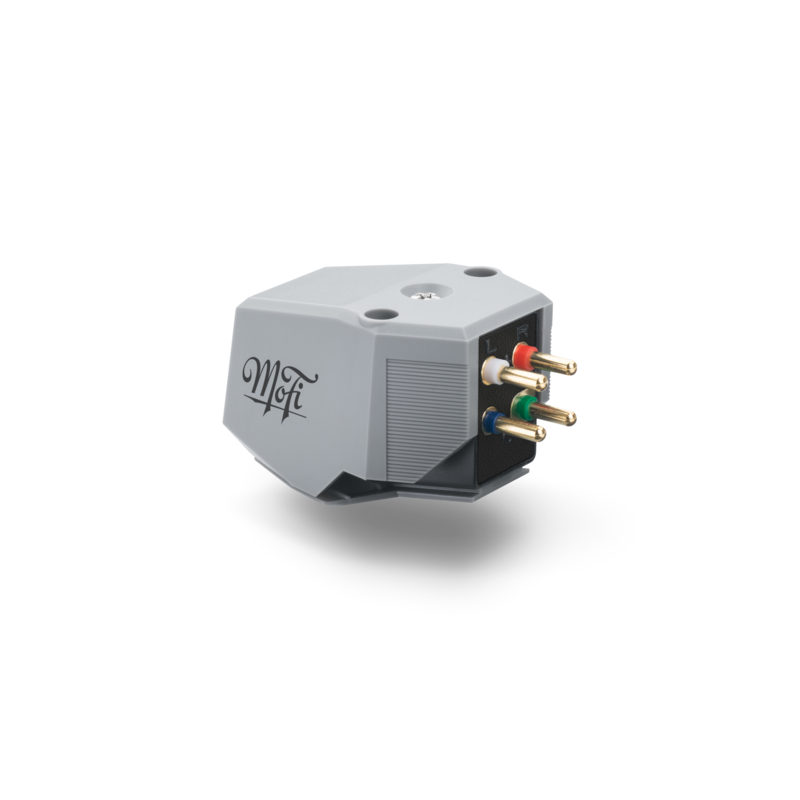

The StudioTracker is a moving-magnet (MM) stereo phono cartridge with a V-Twin dual-magnet generator, a bonded elliptical diamond stylus and a polymer body. It suits vinyl listeners who want an entry-level cartridge for a standard turntable with an MM phono input.
- V-Twin dual-magnet (MM) stereo generator
- Bonded elliptical diamond stylus
- Aluminum cantilever, polymer body
- 3.5 mV output voltage
- Tracking force 1.8–2.2 g
- Loading: 47 kOhm, 100 pF
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli StudioTracker, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The StudioTracker is a dual-magnet moving-magnet stereo cartridge. Its generator uses two low-mass magnets set in a V formation, parallel to the stereo groove walls. This layout is modelled on the cutting head of a lacquer lathe, such as the one used at Mobile Fidelity Sound Lab.
The stylus is a bonded elliptical diamond on an aluminum cantilever, mounted in a polymer body. The sound is described as rich, with a smooth and slightly forgiving top end. Output is 3.5 mV, with a recommended tracking force of 1.8–2.2 g and a weight of 6.4 g.
As an MM design it works with a standard moving-magnet phono input. Load figures are 47 kOhm impedance and 100 pF capacitance. A manual and a cartridge brochure are available as downloads.
Video
Tehnilised andmed
- Bränd
- MoFi Electronics
- Mudel
- StudioTracker
- Kategooria
- DJ-tehnika › Helipead ja nõelad
Cartridge
- Type
- Dual Magnet (MM) Stereo
- Generator
- V-Twin dual-magnet
- Stylus
- Bonded Elliptical
- Cantilever
- Aluminum
- Body
- Polymer
Audio
- Output voltage
- 3.5mV
- Frequency response
- 20–20,000Hz
- Channel separation
- 7dB at 1KHz
- Channel balance
- 1.5dB at 1KHz
Electrical loading
- Impedance
- 47kOhm
- Capacitance
- 100pF
Compliance
- Static compliance
- 35 x 10e-6/dyne
- Dynamic compliance
- 8 x 10e-6/dyne
Physical
- Weight
- 6.4g
- Tracking force
- 1.8–2.2g
Downloads
- Documents
- Manual, cartridge brochure
