110LP v2
Compact phono preamplifier for moving magnet and moving coil cartridges, with user-set gain, impedance loading, capacitance and equalisation curve. Aimed at vinyl listeners who want an adjustable phono stage that can follow a change of cartridge.
- MM and MC cartridge support with five gain settings, 40-66 dB
- Selectable input impedance: 10 Ω, 100 Ω, 475 Ω, 47 kΩ
- Selectable capacitance: 0, 100, 330, 430 pF
- IEC or RIAA curve, set by underside dipswitches
- THD 0.002 % (20 Hz-20 kHz)
- Compact all-aluminium chassis, 1.5 kg
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli 110LP v2, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

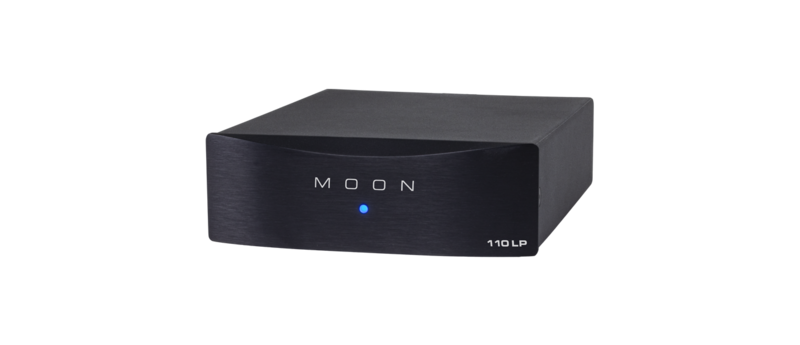

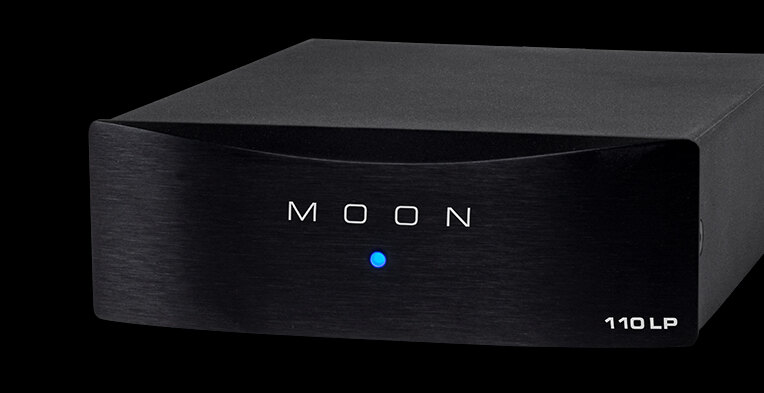

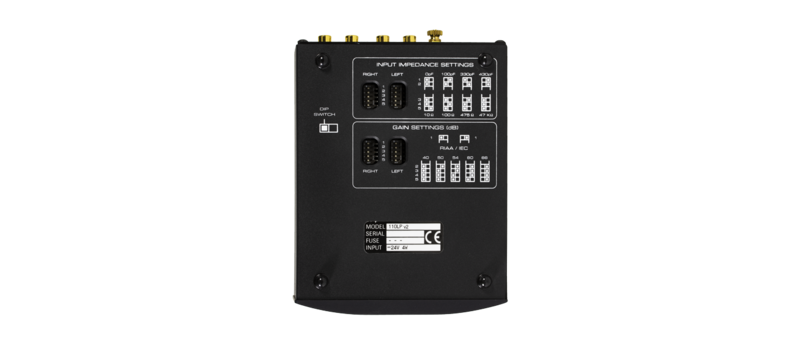

The 110LP v2 is a single-input phono stage in a small all-aluminium chassis. It takes one pair of RCA inputs and handles both moving magnet and moving coil cartridges. Gain, input impedance, input capacitance and the equalisation curve (IEC or RIAA) are set with dipswitches on the underside, so a new cartridge can be matched in a few seconds.
The circuit is a mirror-image symmetrical design on a four-layer PCB with pure copper tracks. An improved power supply, a revised layout and inductive DC filtering are used to lower the noise floor, and the input overload margin is increased. Gain steps run from 40 dB to 66 dB, impedance from 10 Ω to 47 kΩ and capacitance from 0 to 430 pF.
The unit is powered by an external AC supply that accepts 100-240 V and draws 2 W at idle. It is intended to stay powered on at all times. Output connections are gold-plated RCA.
Video
Tehnilised andmed
- Bränd
- Moon
- Mudel
- 110LP v2
- Kategooria
- Hi-Fi ja kodune heli › Muu Hi-Fi
Inputs
- Single-ended inputs
- 1 pair (RCA)
- Input impedance (adjustable)
- 10Ω / 100Ω / 475Ω / 47kΩ
- Input capacitance (adjustable)
- 0 / 100pF / 330pF / 430pF
- Cartridge types
- Moving magnet and moving coil
Audio
- Gain level (adjustable)
- 40dB / 50dB / 54dB / 60dB / 66dB
- Curve
- IEC / RIAA
- Circuit layout
- Mirror-image symmetrical circuit
- Signal-to-noise ratio (full scale @ 40 dB gain)
- 104 dB
- Signal-to-noise ratio (full scale @ 60 dB gain)
- 87 dB
- Frequency response
- 20Hz - 20kHz (± 0.5dB)
- Intermodulation distortion
- 0.002%
- THD (20Hz - 20kHz)
- 0.002%
Power
- Power consumption at idle
- 2 W
- AC power requirements
- 100-240V 50Hz / 60 Hz
Physical
- Dimensions (W x H x D)
- 5.0 x 1.65 x 6.5 in / 12.7 x 4.2 x 16.5 cm
- Shipping weight
- 3.3 lb / 1.5 kg
- Chassis
- All-aluminium

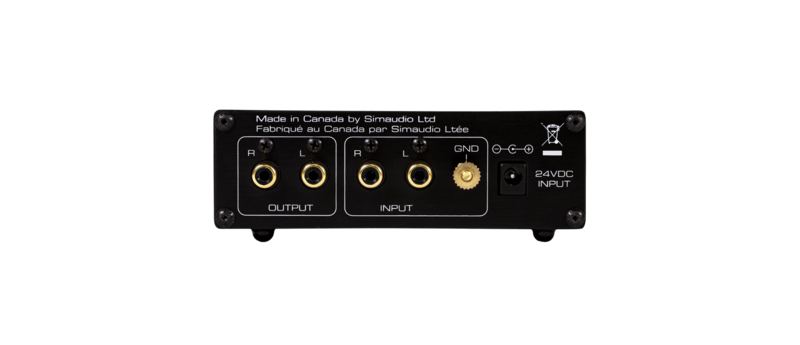

- Connectors
- Gold-plated RCA
In the box
- Power supply
- External AC power supply
- Cables
- AC mains
- Tool
- Stick for under-panel dipswitch settings
- Documents
- Warranty and product registration information (USA and Canada only)
