Stereo power amplifier in a dual-mono layout rated at 300 W per channel into 8 ohms and 600 W into 4 ohms, with a mono mode for bridged use. It suits high-resolution hi-fi systems and pairs with the MOON 891 preamplifier.
- 300 W per channel into 8 Ω, 600 W into 4 Ω
- 800 W into 8 Ω in mono mode
- MDCA topology with no global feedback
- Two 1500 VA toroidal transformers, 228,000 µF capacitance
- RCA and XLR inputs, MOONLink port
- Low-power standby draws 1.25 W
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli 861, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

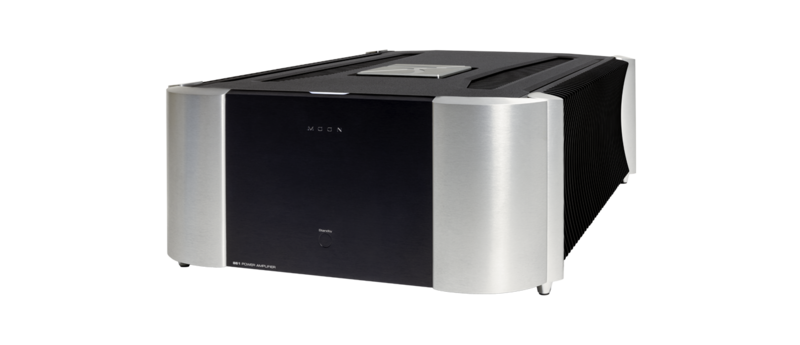

The 861 is a stereo power amplifier from the North Collection. It uses MOON's MDCA distortion-cancelling topology without global feedback, with a dual-mono configuration. It is rated at 300 W per channel into 8 ohms and 600 W into 4 ohms, or 800 W into 8 ohms in mono. THD+N is 0.001% at 300 W and the damping factor is 900.

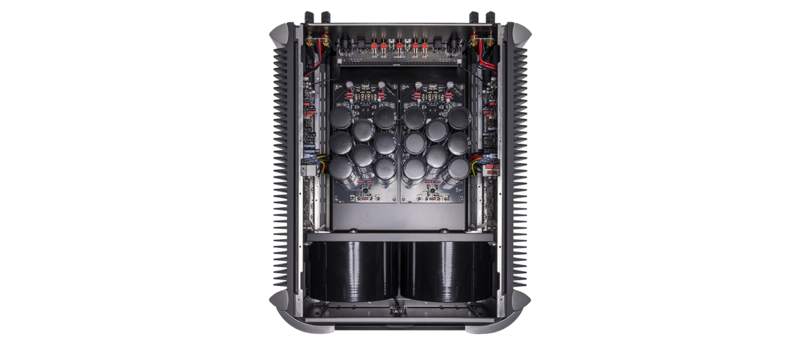

The power supply uses two 1500 VA custom low-noise toroidal transformers and 228,000 µF of capacitance. The analog circuits are physically separated, the magnetic shielding is reinforced, and side-mounted heatsinks handle heat dissipation. A multicolour LED indicator shows the amplifier's status.

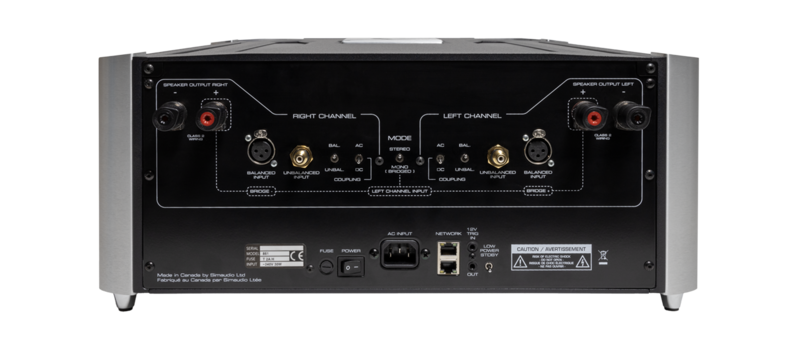

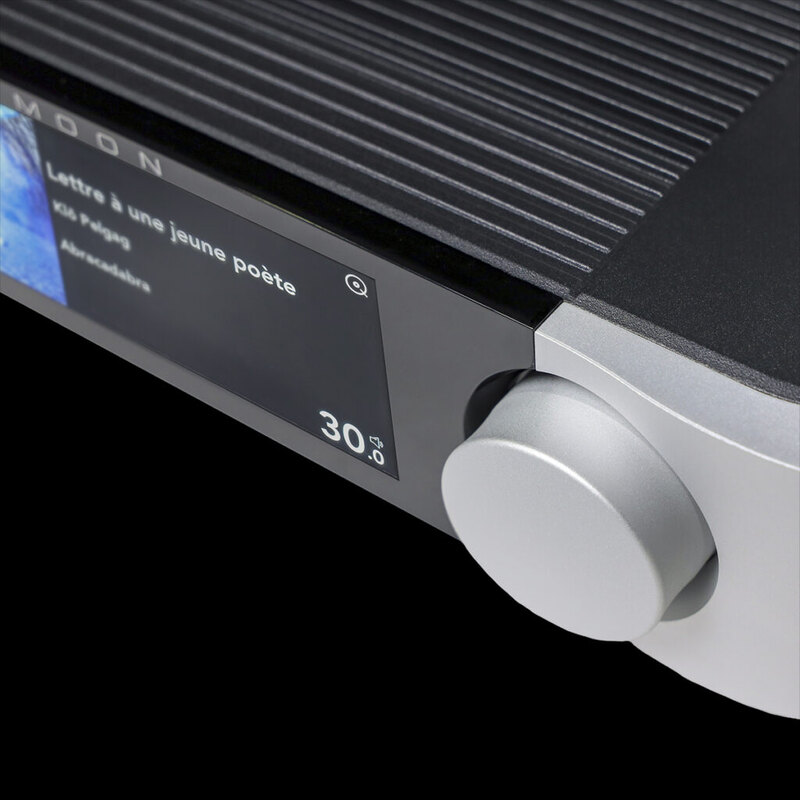

The rear panel has RCA and XLR inputs, a stereo/mono selector switch and a MOONLink port for coordinated start-up with MOON preamplifiers. Standby draws 1.25 W in low-power mode, and a full-power standby mode is also available. The manufacturer suggests the 891 network player/preamplifier as a companion.
Video
Tehnilised andmed
- Bränd
- Moon
- Mudel
- 861
- Kategooria
- Hi-Fi ja kodune heli › Võimendid
Audio
- Output power (stereo, 8 Ω)
- 300 W
- Output power (stereo, 4 Ω)
- 600 W
- Output power (mono, 8 Ω)
- 800 W
- Gain
- 31 dB
- Frequency response
- 2 Hz – 100 kHz (+0 dB / –3 dB)
- Crosstalk
- –119 dB
- Signal-to-noise ratio
- 119 dB
- THD+N (@ 1 W)
- 0.002 %
- THD+N (@ 300 W)
- 0.001%
- Intermodulation distortion
- 0.002%
- Damping factor
- 900
Inputs
- Input types
- RCA and XLR
- Input sensitivity
- 1.4 V
- Input impedance
- 47 kΩ
Connectivity
- Control link
- MOONLink port
- Mode selector
- Stereo / mono
Power
- Power consumption (idle)
- 85 W
- Power consumption (full power standby)
- 75 W
- Power consumption (low power standby)
- 1.25 W
- Transformers
- 2 × 1500 VA custom toroidal
- Power-supply capacitance
- 228,000 µF
Physical
- Dimensions (W x H x D)
- 18.95 x 8.26 x 24 in / 48.1 x 21 x 60.9 cm
- Shipping weight
- 125 lbs / 58 kg
In the box
- Included
- Quick Start Guide, Power Cable, Ethernet Cable
- Warranty card
- Warranty Registration Card (Canada & USA only)
