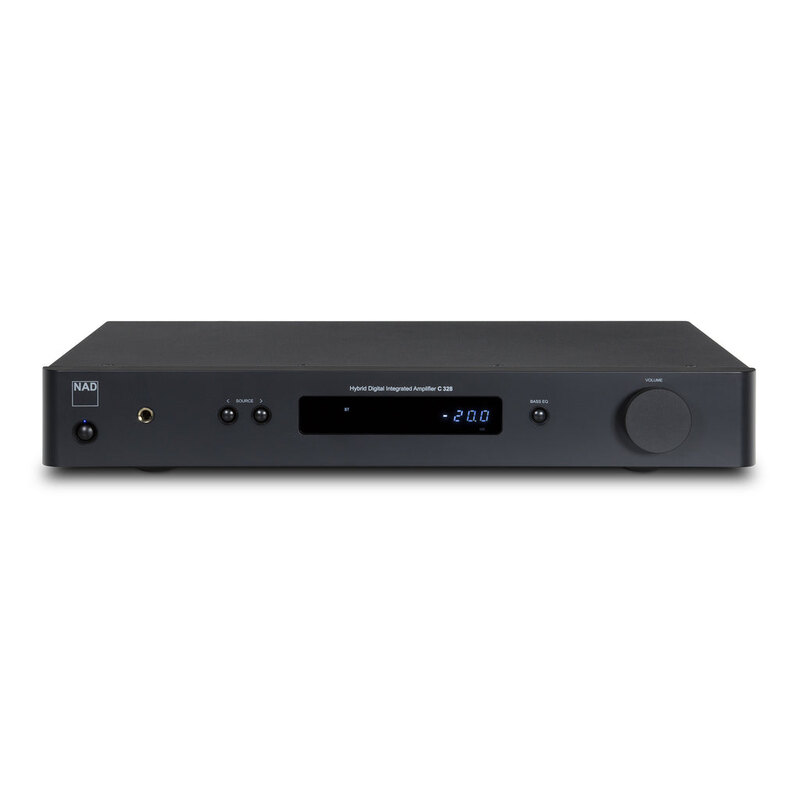

C 328
Compact integrated amplifier with a built-in DAC, MM phono stage and Bluetooth, rated at 50 W per channel into 8 or 4 ohms. Aimed at people building a small two-channel hi-fi system with both analogue and digital sources.
- 50 W per channel into 8 or 4 ohms, HybridDigital UcD
- Built-in DAC stage for digital sources
- MM phono input with RIAA equalisation
- Bluetooth wireless streaming
- Separate headphone amplifier and subwoofer output
- Auto Standby and Eco mode, 0.5 W in Eco standby
Fotod
7Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli C 328, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The C 328 is a compact stereo integrated amplifier that uses a HybridDigital UcD design to deliver 50 W per channel into 8 or 4 ohms. It combines the amplifier with a DAC stage for digital sources and an MM phono input with RIAA equalisation for turntables.
Bluetooth handles wireless streaming, and the analogue and digital inputs allow it to be paired with both traditional and modern sources. A separate headphone amplifier and a subwoofer output are included, and volume is controlled digitally. An IR remote is provided for everyday operation.
For day-to-day use the amplifier has Auto Standby and an Eco mode, with standby consumption of 0.5 W in Eco mode and 0.6 W in Control Standby. The chassis measures 435 x 70 x 285 mm and weighs 4.9 kg, which suits small systems and living spaces.
Video
Tehnilised andmed
- Bränd
- NAD
- Mudel
- C 328
- Kategooria
- Hi-Fi ja kodune heli › Võimendid
Amplifier
- Continuous output power (8 and 4 ohms)
- 50W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
- Amplifier technology
- HybridDigital UcD
- Volume control
- Digital
Analogue In / Headphone Out
- THD (20 Hz – 20 kHz)
- <0.005 % at 1 V out
- Signal-to-noise ratio
- >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
- Frequency response
- ±0.3 dB (20 Hz - 20 kHz)
- Output impedance
- 11 ohms
Analogue In / Subwoofer Out
- THD (20 Hz – 20 kHz)
- <0.005 % at 1 V out
- Signal-to-noise ratio
- >100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain)
- Frequency response
- ±0.2 dB (20 Hz - 20 kHz)
- Output impedance
- 200 ohms
Analogue In / Speaker Out
- THD (20 Hz – 20 kHz)
- <0.03 % (100 mW to 40 W, 8 ohms and 4 ohms)
- Signal-to-noise ratio
- >95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms)
- Frequency response
- ±0.3 dB (20 Hz - 20 kHz)
Phono In / Speaker Out
- Phono input type
- MM
- THD (20 Hz – 20 kHz)
- <0.03 % (200 mW to 40 W, 8 ohms and 4 ohms)
- Signal-to-noise ratio
- >75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms)
- Frequency response (RIAA deviation)
- ±0.3 dB (20 Hz - 20 kHz)
Connectivity
- Wireless
- Bluetooth
- Remote control
- IR remote
Power
- Power consumption, ECO Standby mode
- 0.5 Watts
- Power consumption, Control Standby mode
- 0.6 Watts
- Power consumption, OFF mode
- 0 Watts
Physical
- Dimensions (W x H x D)
- 435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4")
- Net weight
- 4.9 kg (10.8 lbs)
- Shipping weight
- 5.9 kg (13.0 lbs)
