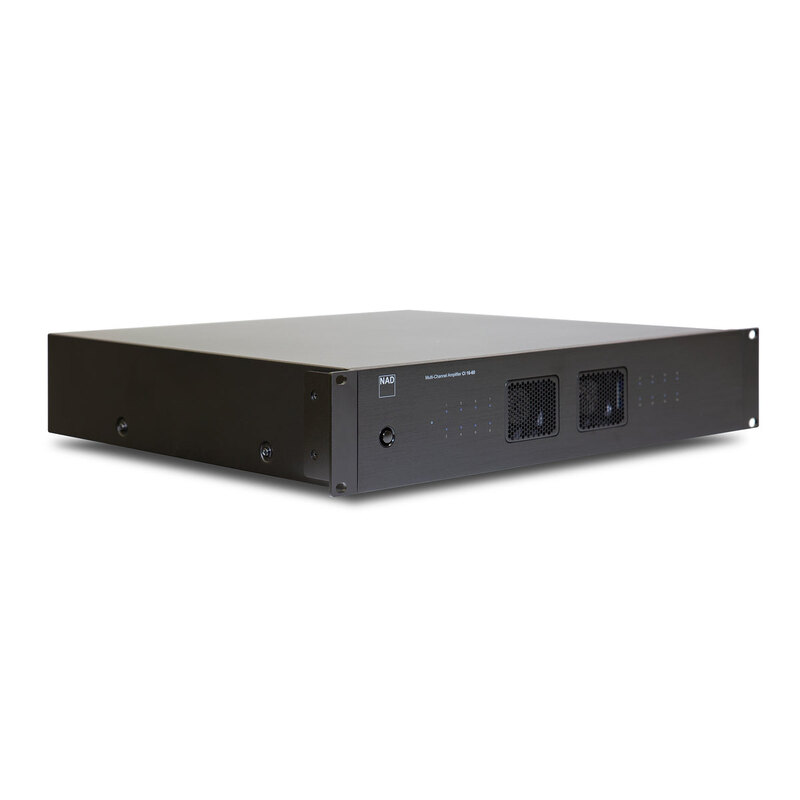

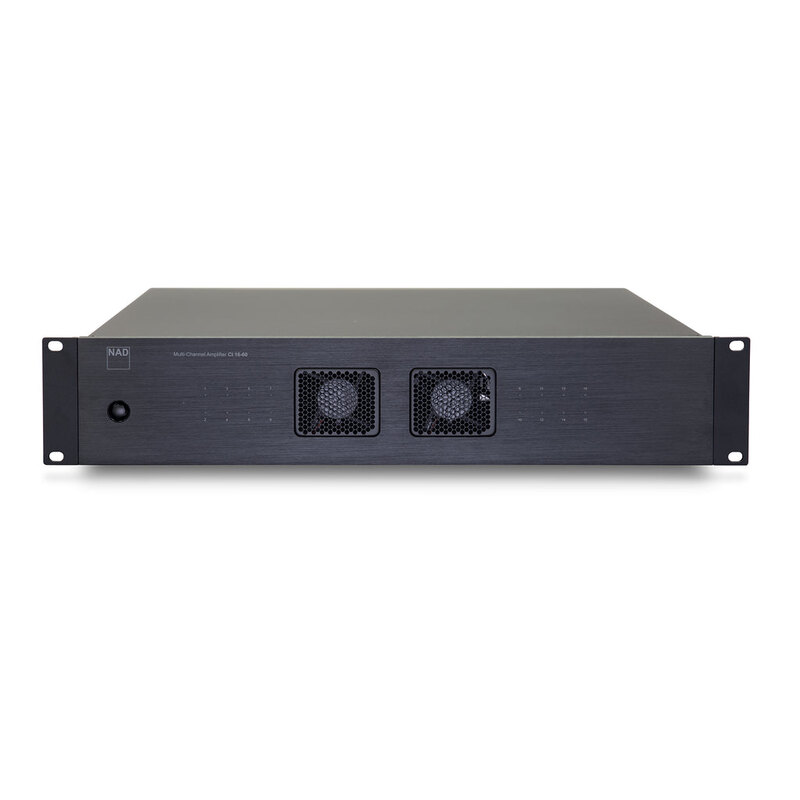

CI 16-60 DSP
A 16-channel rack-mount power amplifier for distributed audio, delivering 60 W per channel into 8 ohms using HybridDigital amplification. It suits whole-home, multi-room and commercial installations. The model is listed as archived and no longer sold by the maker.
- 16 amplifier channels in a rack-mount chassis
- 60 W per channel into 8 ohms, 65 W into 4 ohms
- Bridgeable channel pairs: 140 W into 8 ohms
- HybridDigital amplification
- Trigger input 3–30 Vdc; 0.5 W standby
- Control4, Crestron and RTI driver integrations
Fotod
6Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli CI 16-60 DSP, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus
The CI 16-60 DSP is a sixteen-channel amplifier in a compact rack-mount chassis, intended for installations that drive many zones from one unit. It uses a HybridDigital amplifier design, which is described as efficient and low in heat and energy use. Output is 60 W per channel into 8 ohms and 65 W into 4 ohms with all channels driven, and channel pairs can be bridged for higher output, rated at 140 W into 8 ohms.

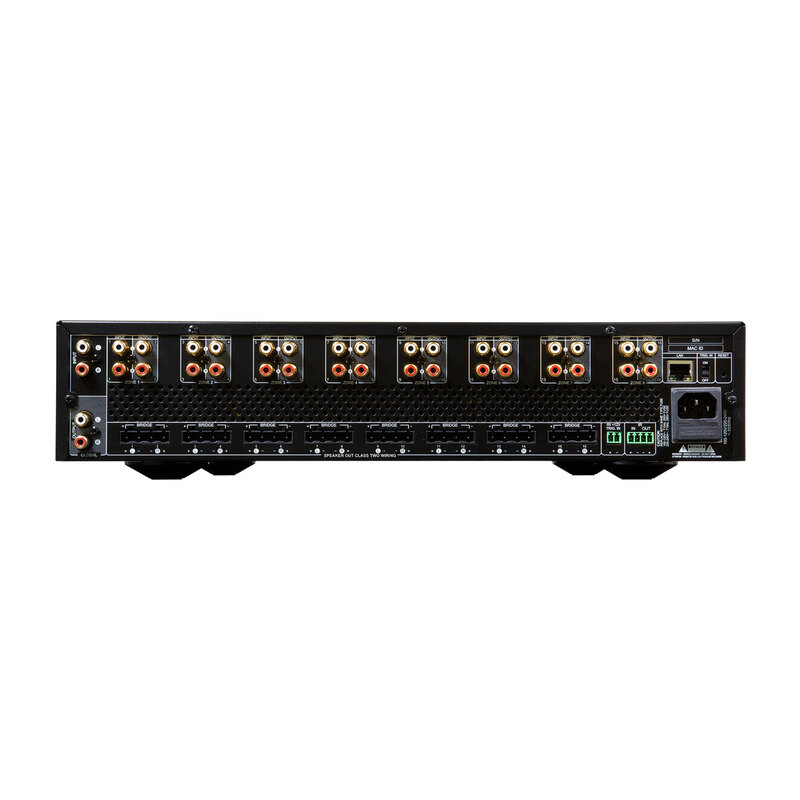

The amplifier takes line-level inputs and has a trigger input (3 to 30 Vdc) plus control options for automation systems. It senses an analog input signal at a threshold of about 3 mVrms and draws 0.5 W in standby. It is built for continuous operation in multi-zone projects.
For system integration, driver integrations are available for Control4, Crestron and RTI, and IP control codes, a data sheet, a manual, a quick setup guide and firmware (v2.27) are offered as downloads. The chassis measures 483 x 100 x 435 mm and weighs 10.3 kg.
Tehnilised andmed
- Bränd
- NAD
- Mudel
- CI 16-60 DSP
- Kategooria
- Live-heli › Võimendid
Audio
- Channels
- 16
- Continuous output power into 8 ohms
- 60 W (all channels driven, 1 kHz, 0.05% THD)
- Continuous output power into 4 ohms
- 65 W (all channels driven, 1 kHz, 0.05% THD)
- Continuous output power into 8 ohms, bridged mode
- 140 W (all channels driven, 1 kHz, 0.05% THD)
- THD (1 W to 50 W, 8 ohms and 4 ohms)
- 0.05% (20 Hz – 3 kHz)
- Signal-to-noise ratio
- 80 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)
- Clipping power (all channels driven)
- 60 W (1 kHz, 8 ohms, 1% THD)
- Clipping power into 8 ohms, bridged mode
- 150 W (1 kHz, 1% THD, all channels driven)
- IHF dynamic power, all channels driven
- 8 ohms: 65 W
- IHF dynamic power, two channels driven
- 8 ohms: 70 W
- IHF dynamic power, bridged mode, all channels driven
- 8 ohms: 270 W
- IHF dynamic power, bridged mode, two channels driven
- 8 ohms: 280 W
- Peak output current
- 15 A (1 ohm, 1 ms)
- Damping factor
- 110 (20 Hz to 1 kHz, 8 ohms)
- Frequency response
- ±1 dB (20 Hz – 20 kHz)
- Channel separation
- 60 dB (1 kHz)
Inputs
- Maximum undistorted input level
- 2900 mV
- Input sensitivity (50 W in 8 ohms, maximum volume)
- 760 mV
- Input impedance
- 20 kohms//220pF
- Analog input audio sense threshold (one channel with signal)
- 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz)
- Trigger IN level
- 3 - 30 Vdc
Power
- Standby power
- 0.5 W
Physical
- Dimensions (W x H x D)
- 483 x 100 x 435 mm
- Net weight
- 10.3 kg (22.7 lbs)
- Shipping weight
- 12.8 kg (28.2 lbs)
