UR-RT4
Six-input, four-output USB 2.0 audio and MIDI interface with four switchable Rupert Neve Designs input transformers and Yamaha D-PRE preamps. Aimed at home and project studios that need more I/O for recording and mixing; now discontinued.

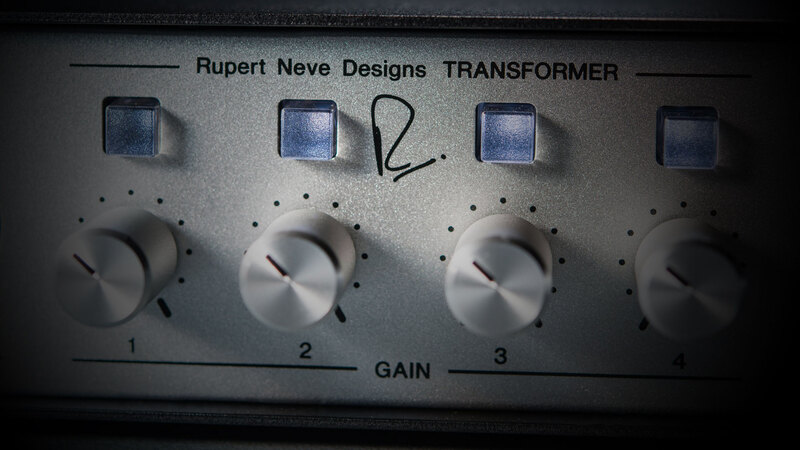

- 4 switchable Rupert Neve Designs input transformers
- Class A D-PRE preamps with +48 V phantom power
- 24-bit/192 kHz, USB 2.0
- 6 inputs, 6 TRS outputs, MIDI I/O
- Latency-free DSP monitoring with REV-X and channel strip
- Two headphone outputs with independent volume
Fotod
8Kuulutused
Sellel mudelil pole veel kuulutusi
Kui keegi müüb mudeli UR-RT4, ilmuvad kuulutused ja müügiajalugu siia.
Müü samasuguneKirjeldus

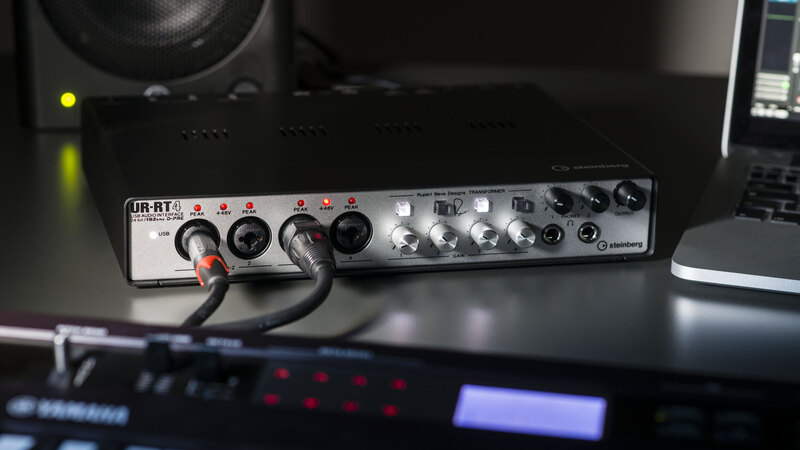

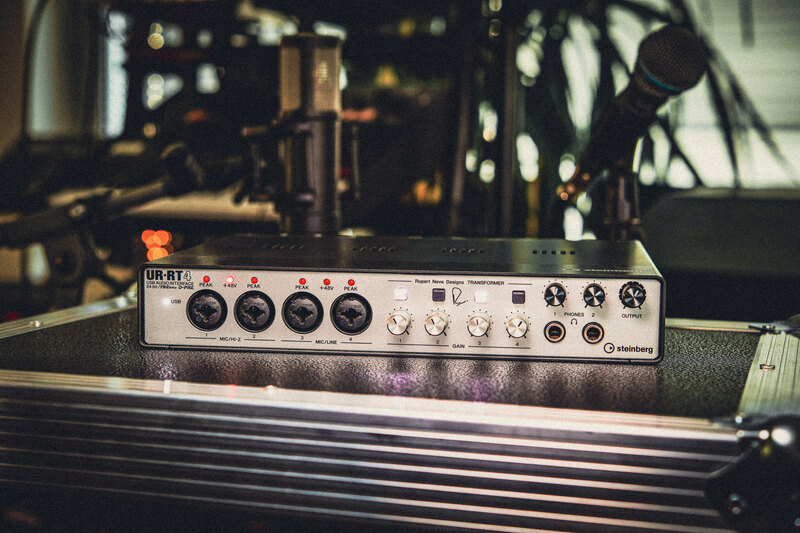

The UR-RT4 is a desktop USB 2.0 audio and MIDI interface in a full-metal housing. It records and plays back at up to 24-bit/192 kHz and offers six inputs and six TRS outputs. Four combo inputs feed Class A D-PRE microphone preamps, each with a switchable Rupert Neve Designs transformer, and two of the inputs accept Hi-Z sources. Switchable +48 V phantom power is available for the microphone inputs.
An onboard SSP 2 DSP handles latency-free monitoring with effects, controlled through the dspMixFx mixer application. Included effects are REV-X reverb, the Sweet Spot Morphing Channel Strip and Guitar Amp Classics (Clean, Crunch, Drive and Lead), available as VST 3 and AU plug-ins. A high-pass filter is also provided, and monitoring with effects is integrated with Cubase.

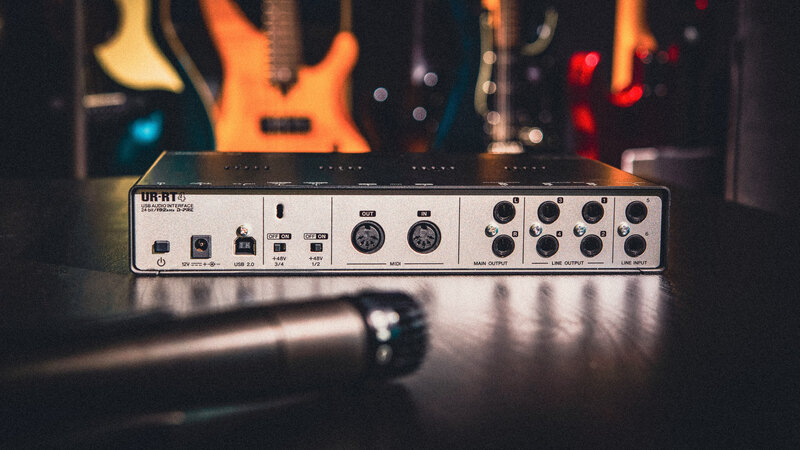

Two headphone outputs each have their own volume control, and the six TRS outputs allow routing to several monitor pairs. The interface connects to a computer or iPad/iPhone over USB 2.0, includes MIDI I/O and is powered by an external 12 V AC adaptor. Cubase AI and Cubasis LE are included.
Video
Tehnilised andmed
- Bränd
- Steinberg
- Mudel
- UR-RT4
- Kategooria
- Stuudio › Audioliidesed
Inputs
- Total number of inputs
- 6
- Microphone inputs
- 4
- Microphone preamp
- D-PRE with RND transformer
- Analog inputs Combo
- 4
- Analog inputs TRS
- 2
- Inputs with Hi-Z
- 2
- Inputs with line level
- 2
- Phantom power
- 4
Outputs
- Total number of outputs
- 6
- Total number of individual outputs
- 4
- Analog outputs TRS
- 6
- Headphone outputs
- 2 (with dedicated volume control)
Audio
- AD/DA
- 24 bit
- Maximum sample rate
- 192 kHz
- Dynamic range input
- 101
Connectivity
- Connection type
- USB 2.0
- MIDI I/O
- Yes
- ADAT in/out
- 0 / 0
- S/PDIF optical in/out
- 0 / 0
DSP
- Monitoring
- Latency free monitoring with FX
- Onboard DSP
- SSP 2
- True Integrated Monitoring with FX in Cubase
- Yes
- High-pass filter
- Yes
- REV-X Reverb
- Yes
- Sweet Spot Morphing Channel Strip
- Yes
Power
- Power supply
- External 12 V AC adaptor (Yamaha PA-150B)
Physical
- Design
- Desktop (2/3 19", 1HU)
- Casing
- Full-metal casing
- Weight
- 2.4 kg
- Width
- 267 mm
- Height
- 47 mm
- Depth
- 208 mm
Software
- Included software
- Cubase AI, Cubasis LE, dspMixFx
- Operating systems (Windows)
- Windows 7 (64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit), Windows 11 (64-bit)
- Operating systems (Mac)
- macOS 10.12 (Sierra) to macOS 13 (Ventura)
- Operating systems (iOS)
- iOS 10 to iOS 16
